Electrical installation
Installation according to EMC (installation of a CE-typical drive system)
Shielding
6
169
EDS84ASC552 EN 10.0
Realisation
PE
PE
PE
M
3~
8
9
PES
1
2
4
7
0
6
5
3
8400SLC024

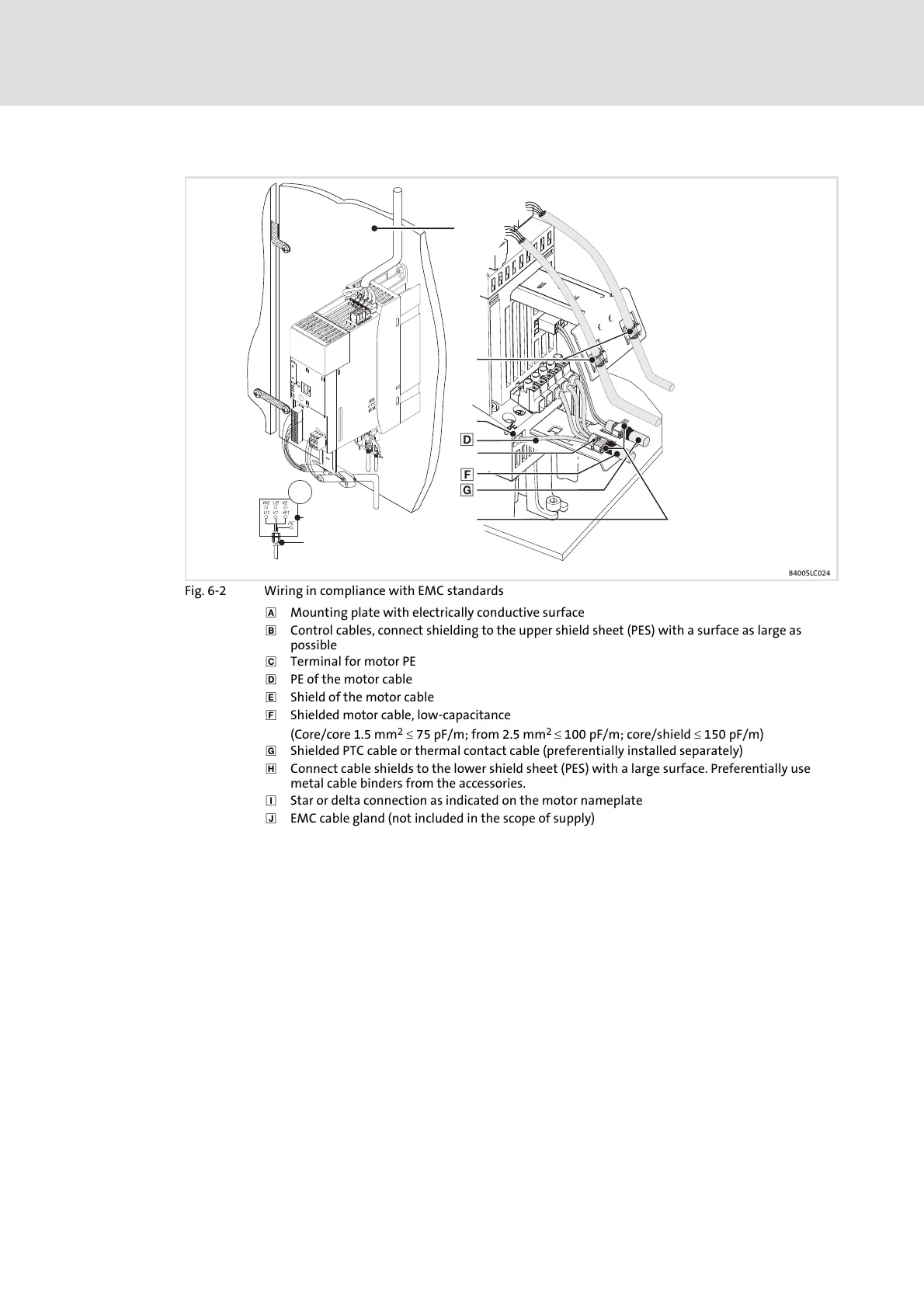

Fig. 6-2 Wiring in compliance with EMC standards
Mounting plate with electrically conductive surface
Control cables, connect shielding to the upper shield sheet (PES) with a surface as large as
possible
Terminal for motor PE
PE of the motor cable
Shield of the motor cable
Shielded motor cable, low-capacitance
(Core/core 1.5 mm
2
75 pF/m; from 2.5 mm
2
100 pF/m; core/shield 150 pF/m)
Shielded PTC c able or thermal contact cable (preferentially installed separately)
Connect cable shields to the lower shield sheet (PES) with a large surface. Preferentially use
metal cable binders from the accessories.
Star or delta connection as indicated on the motor nameplate
EMC c able gland (not included in the scope of supply)
