Electrical installation
Devices i n the power range 0.25 ... 2.2 kW (1/N/PE AC 230 V)

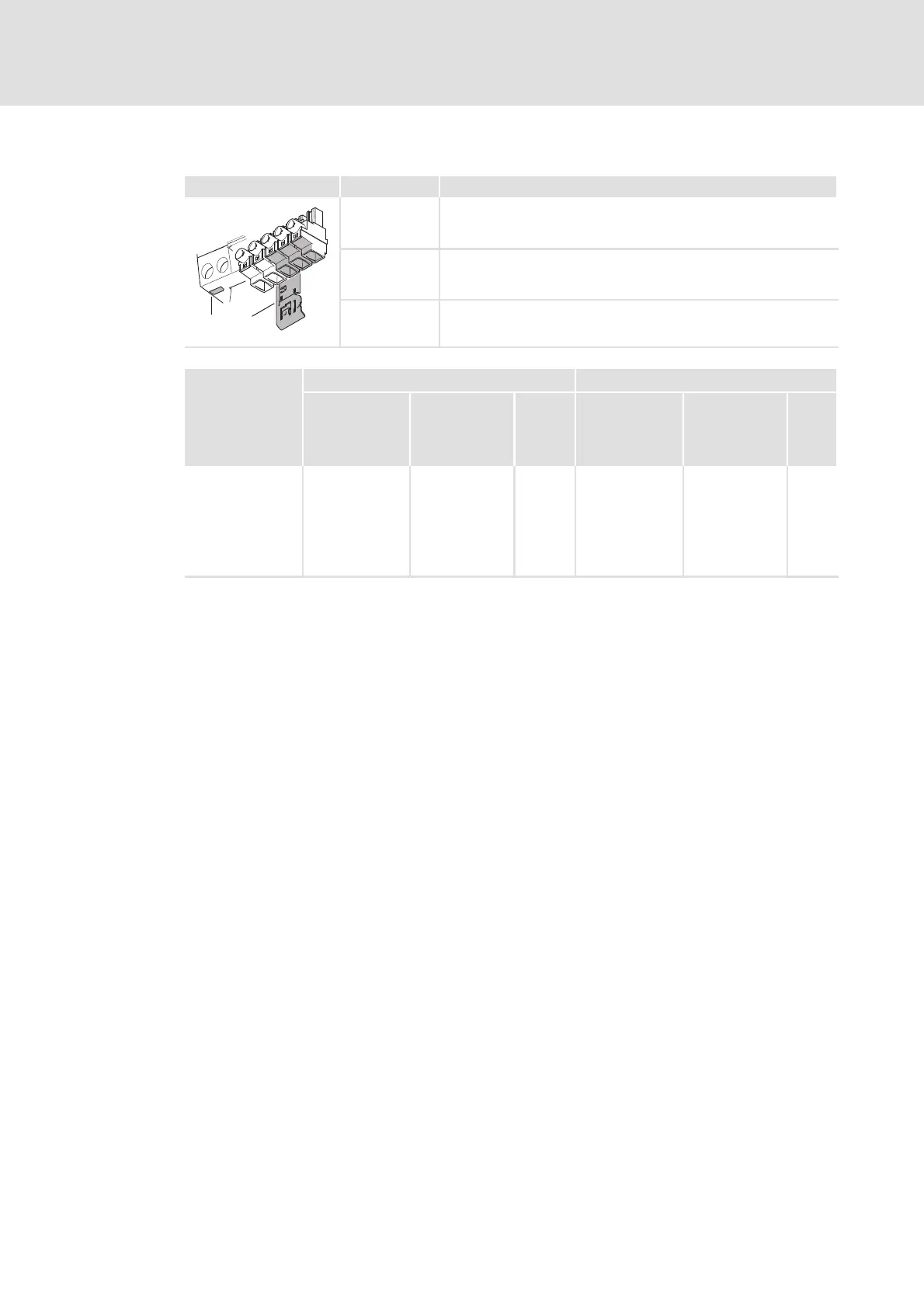

Terminal assignment of the power connections
6

186
EDS84ASC552 EN 10.0
Motor connection
Terminal X105 Labelling Description
PE
Rb1
Rb2
V
U
W
"
PE
U, V, W Motor
PE PE conductor

Functional earth
HF-shield termination by connection to PE
8400GGXx002b
Terminal data PE
Conductor
cross-section
Tightening
torque

Conductor
cross-section
Tightening
torque

[mm
2
]
[AWG]
[Nm]
[lb-in]
[mm
2
]
[AWG]
[Nm]
[lb-in]
E84AVxxx2512
E84AVxxx3712
E84AVxxx5512
E84AVxxx7512
E84AVxxx1122
E84AVxxx1522
E84AVxxx2222
1 ... 2.5
18 ... 12
0.5
4.4
3.5 x 0.6
1...6
18 ... 10
1.7
15
PZ 2
7x1
