Electrical installation
Common control terminals
Important notes
6
214
EDS84ASC552 EN 10.0
Shield and connect cables
The uncovered cable shield at the left shield lug of the stripped control cables must be
connected using a (metal) cable tie for high conductivity.

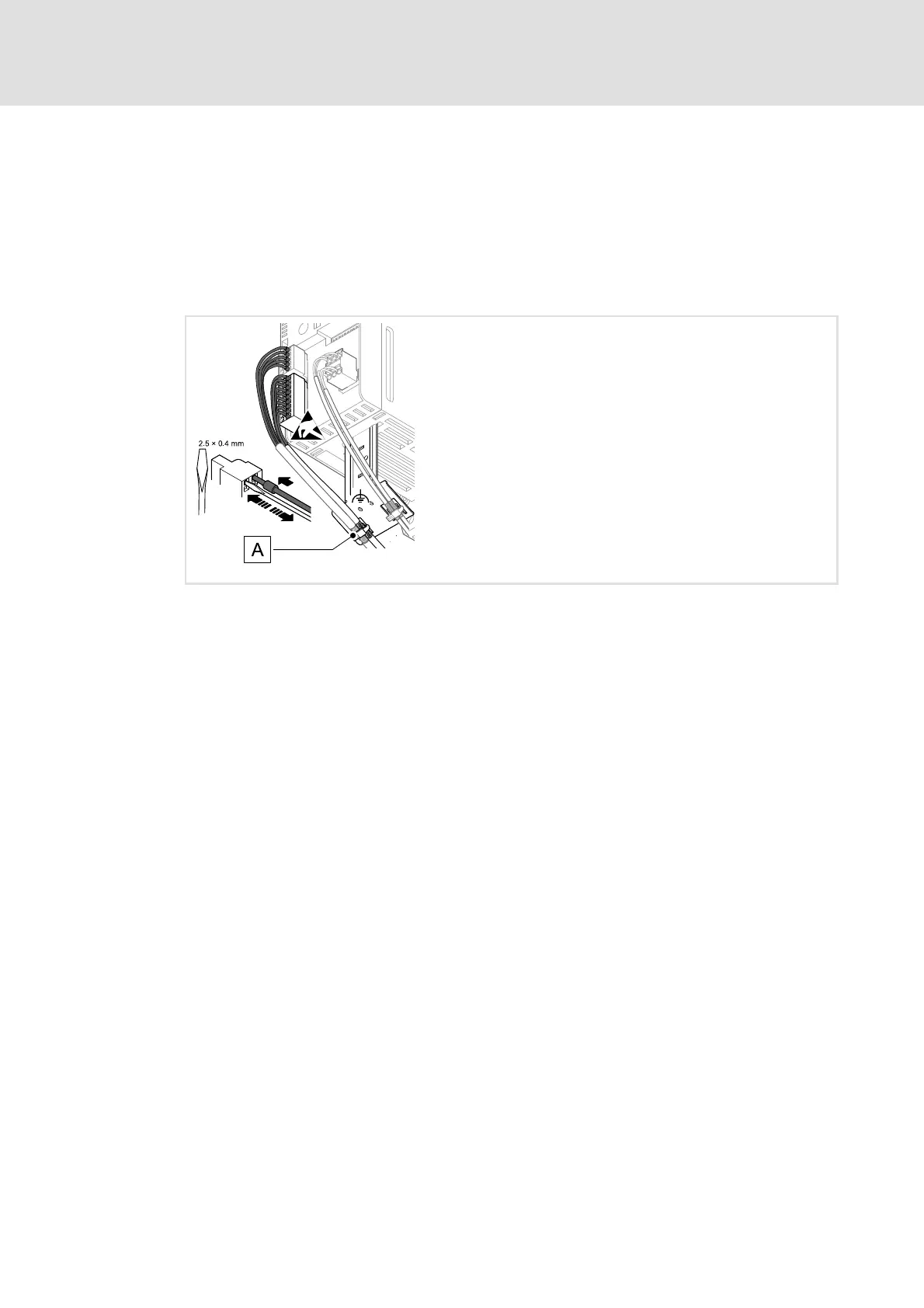

As shown in the illustration, the cable ends (if required, provided with wire end ferrule)
must be inserted into the corresponding spring terminals with a suitable screwdriver (for
max. width, see illustration).
8400SLC018
Fig. 6-26 Shielding and connecting control cables
