Braking operation
Braking o peration with external brake resistor
Wiring of brake resistor
8
259
EDS84ASC552 EN 10.0
Wiring principle
R
B
RB1 RB2
< 0.5 m
PE
T1 T2
R
B
RB1 RB2
<5m
PE
PES
PES
T1 T2
ERBG008 ERBG007

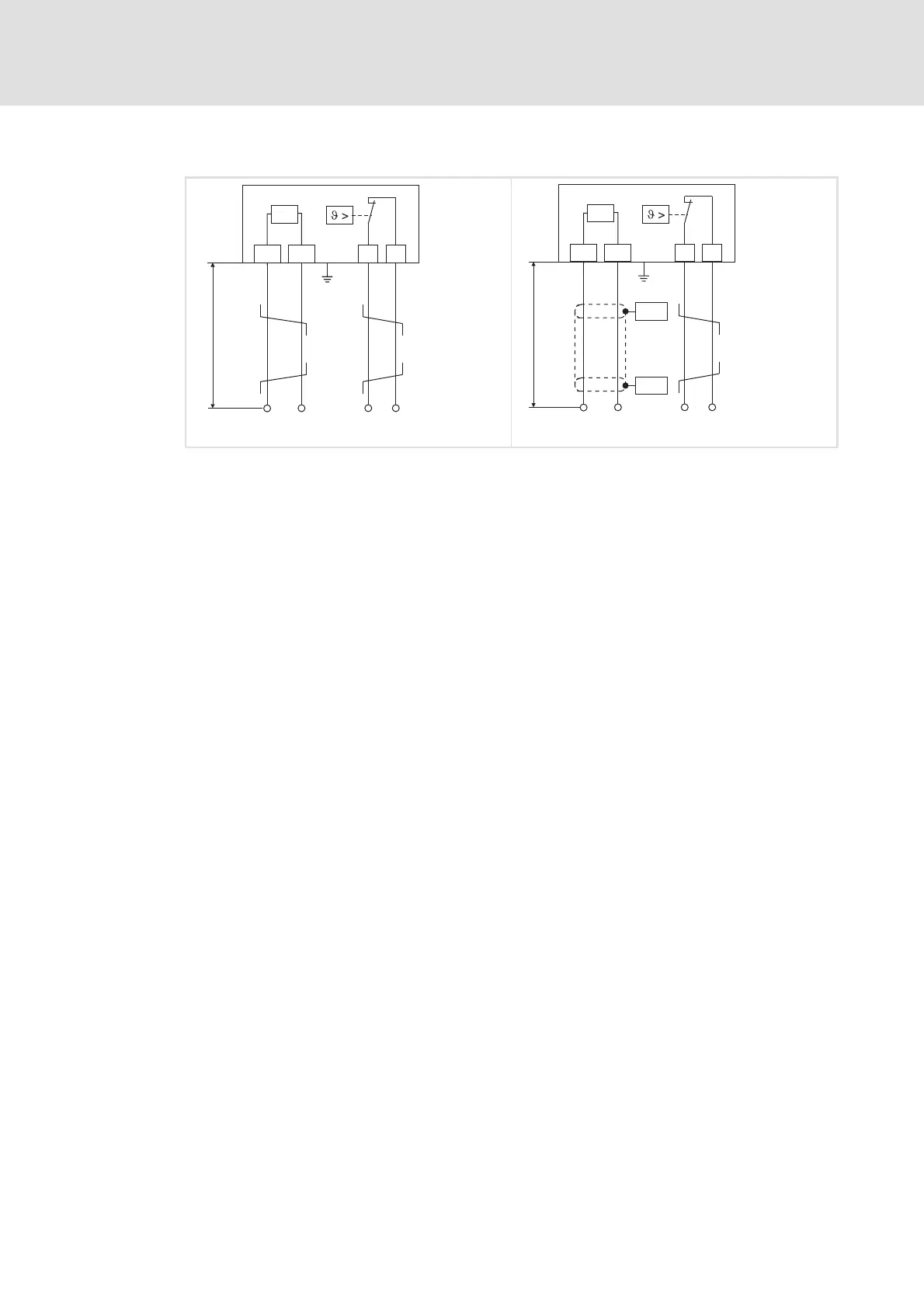

Fig. 8-1 Wiring of a brake resistor to the controller
PES HF-shield termination by PE connection via shield clamp
Rb1, Rb2 Terminals of the brake resistor
Supply cable to the controller
T1, T2 Terminals temperature monitoring of the brake resistor (thermal contact/NC
contact)
Supply cable for evaluation of temperature monitoring
(to be integrated e.g. into the latch circuit of the mains contactor of the supply)
