Technical data
Terminal description
Overview
4

76
EDS84ASC552 EN 10.0

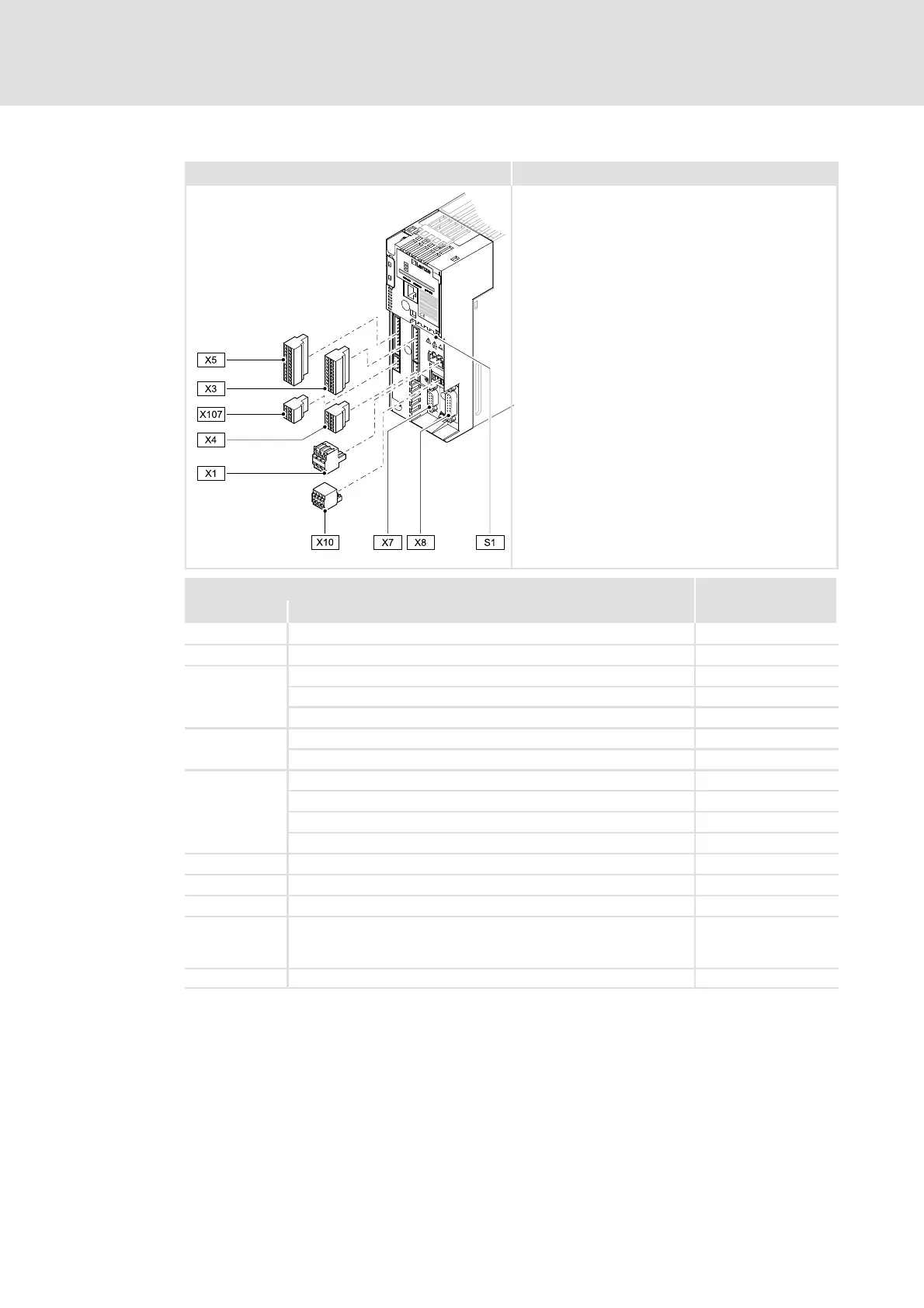

Control terminals for devices in the TopLine version
8400TLC032a
Connection Number
Pos. Description TopLine C
X1 System bus (CANopen) 1
S1 Systembussettings(CANopen) 1
X3
Analog inputs (voltage/current) 2/2
Analog outputs (voltage/current) 2/2
10 V reference voltage 1
X4
Digital outputs 3
24 V voltage ou tput 1
X5
Digital inputs 7
Controller enable 1
24 V supply of the control electronics 1
24 V internal supply 1
X6 Diagnostics 1
X7 Resolver (D-Sub 9-pole) 1
X8 Multi encoder (D-Sub 15-pole) 1
X10
Axis bus
–Sync/State
–CAN
1
X107 Motor holding brake 1
