Mechanical installation
Standard devices in a power range of 0.25 ... 3 kW
Assembly without filter in ”standard” technique
5

90
EDS84ASC552 EN 10.0
Assembly without filter in ”standard” technique
For mounting, use two screws M5 x >10 mm. The mounting location and material must
ensure a durable mechanical connection.
ƒ Screw and washer assemblies or hexagon socket screws with washers are
recommended.
How to proceed:
1. Prepare the fixing holes on the mounting surface.
2. Screw the controller directly to the mounting surface.
StateLine, HighLine
8400GG105m

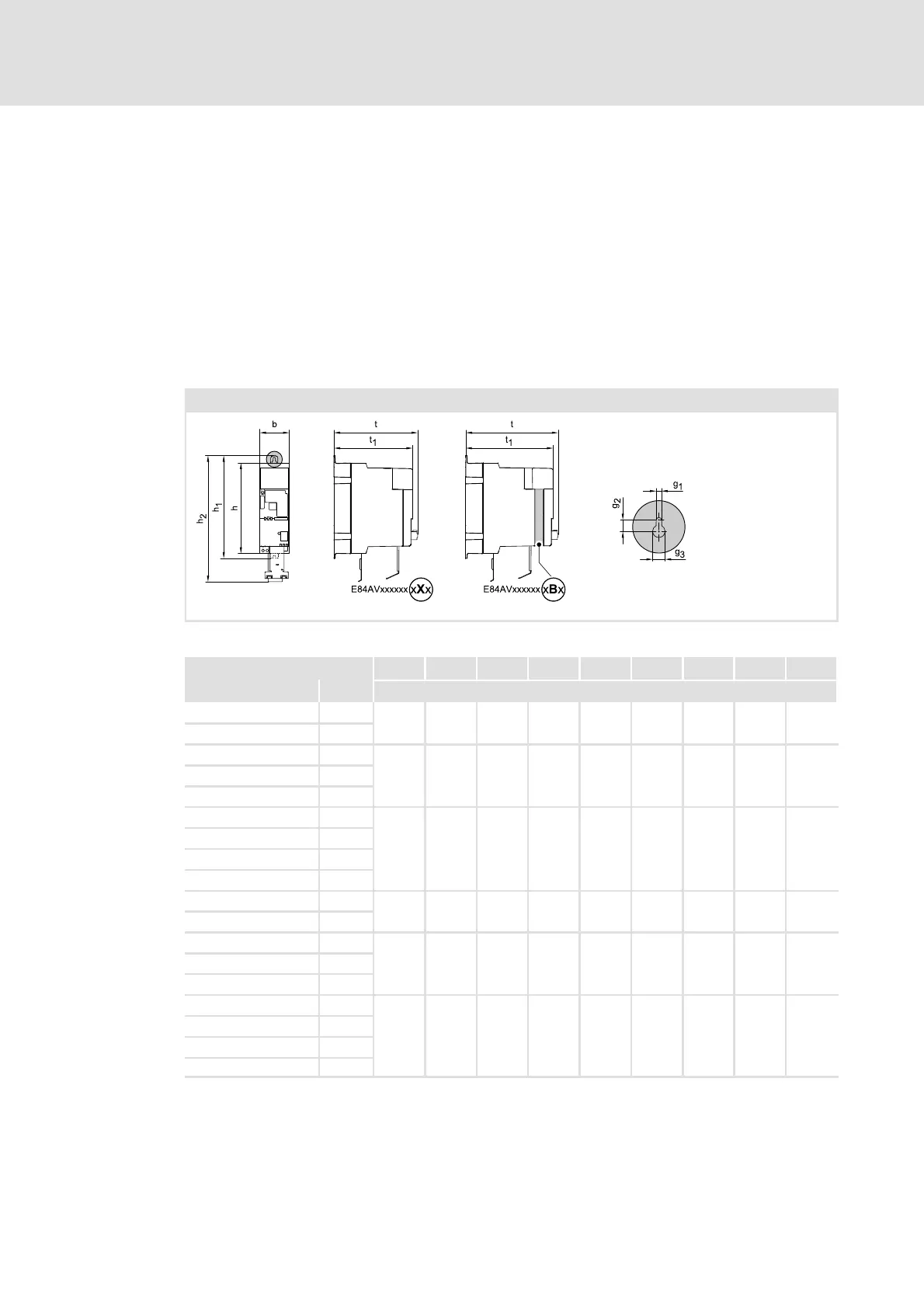

Fig. 5-1 Device dimensions
h b t h
1
h
2
t
1
g
1
g
2
g
3
[kW] [mm]
E84AVxxE2512xXx0.25
165 70 199 194 235 186 6 11 12
E84AVxxE3712xXx 0.37
E84AVxxE3714xXx 0.37
215 70 199 244 285 186 6 11 12
E84AVxxE551xxXx 0.55
E84AVxxE751xxXx 0.75
E84AVxxE112xxXx 1.1
270 70 199 304 340 186 6 11 12
E84AVxxE152xxXx 1.5
E84AVxxE222xxXx 2.2
E84AVxxE3024xXS 3.0
E84AVxxE2512xBx 0.25
165 70 219 194 235 206 6 11 12
E84AVxxE3712xBx 0.37
E84AVxxE3714xBx 0.37
215 70 219 244 285 206 6 11 12
E84AVxxE551xxBx 0.55
E84AVxxE751xxBx 0.75
E84AVxxE112xxBx 1.1
270 70 219 304 340 206 6 11 12
E84AVxxE152xxBx 1.5
E84AVxxE222xxBx 2.2
E84AVxxE3024xBS 3.0
