Mechanical installation
Standard devices in a power range of 0.25 ... 3 kW
Assembly without filter in ”standard” technique
5

92
EDS84ASC552 EN 10.0
TopLine
8400GG105n

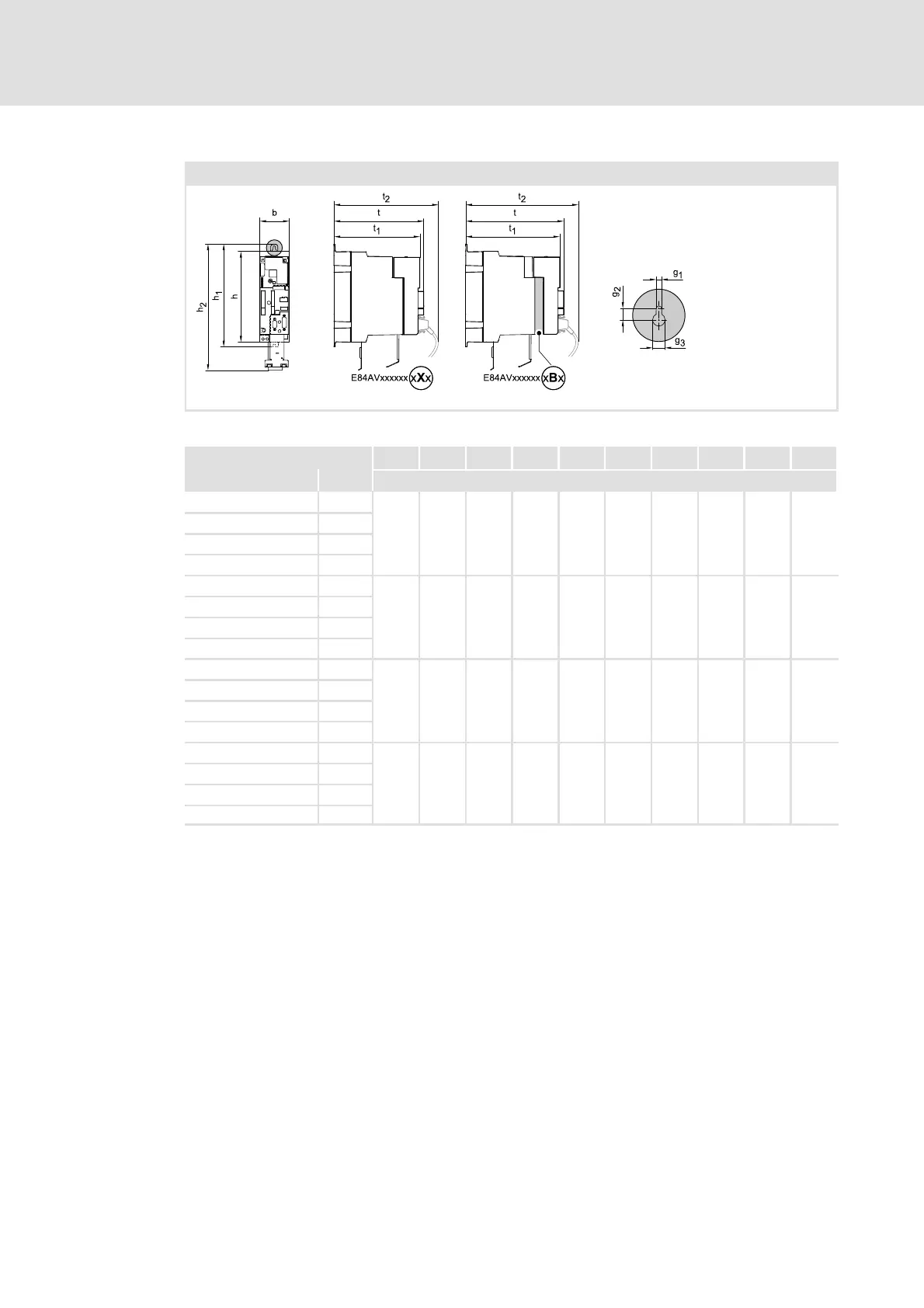

Fig. 5-3 Device dimensions
h b t h
1
h
2
t
1
t
2
g
1
g
2
g
3
[kW] [mm]
E84AVTCE2512xXx0.25
215 70 214 244 285 201 240 6 11 12
E84AVTCE371xxXx 0.37
E84AVTCE551xxXx 0.55
E84AVTCE751xxXx 0.75
E84AVTCE112xxXx 1.1
270 70 214 304 340 201 240 6 11 12
E84AVTCE152xxXx 1.5
E84AVTCE222xxXx 2.2
E84AVTCE3024xXS 3.0
E84AVTCE2512xBx 0.25
215 70 234 244 285 221 260 6 11 12
E84AVTCE371xxBx 0.37
E84AVTCE551xxBx 0.55
E84AVTCE751xxBx 0.75
E84AVTCE112xxBx 1.1
270 70 234 304 340 221 260 6 11 12
E84AVTCE152xxBx 1.5
E84AVTCE222xxBx 2.2
E84AVTCE3024xBS 3.0
