6 Interfaces
6.1 v800-Cabinet

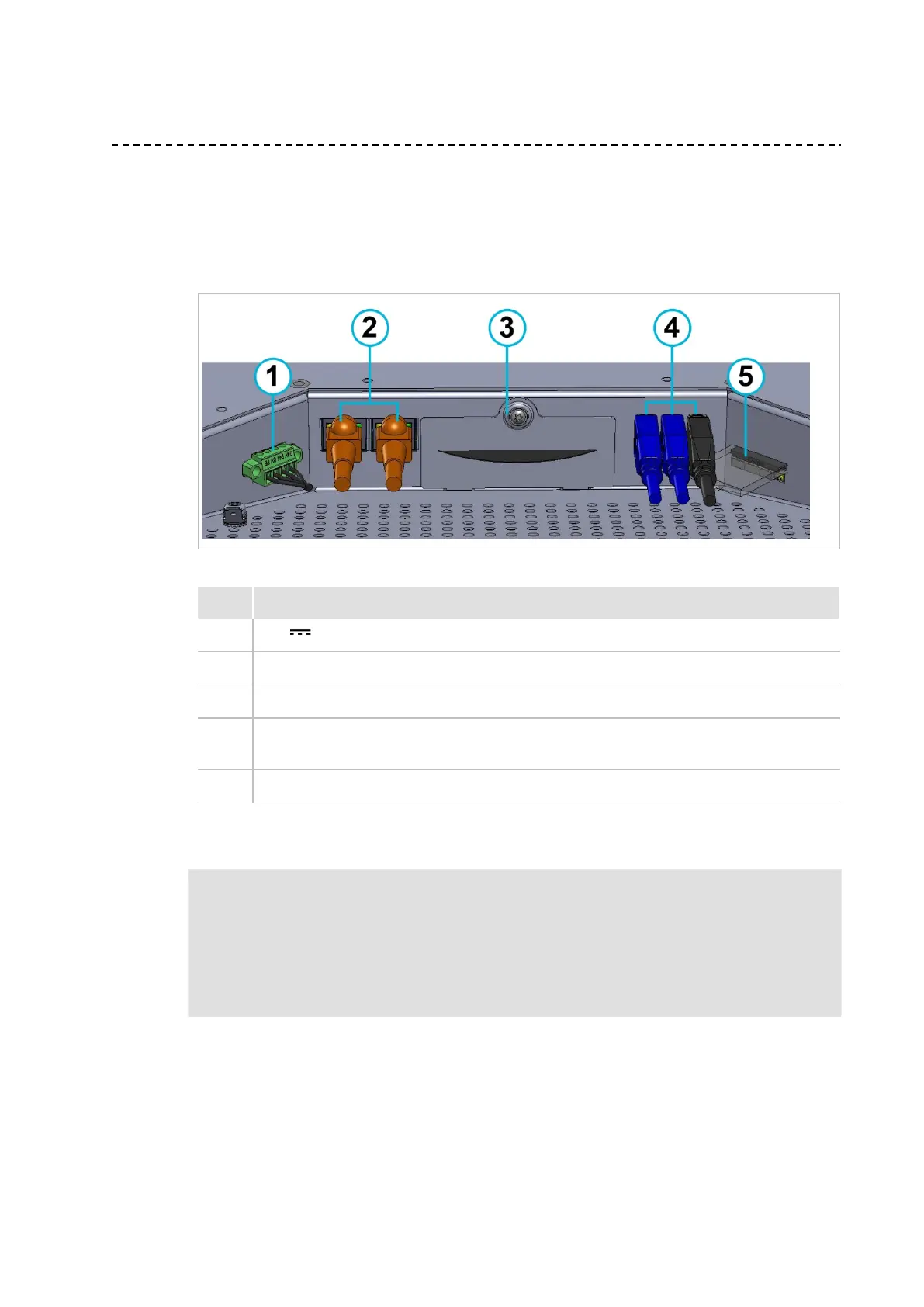

All device connections are in the recessed area on the rear side of the device.
Interfaces
No. Description
1 24 V power supply
2 2 x LAN RJ45
3 1 x 2.5" mass storage behind cover
4 2 x USB 3.0
1 x USB 2.0
5 1 x SD-Card Slot
6.1.1 Earth connection
Warning
Hazard due to overvoltage
If the protective earth is not attached, there is a danger of overvoltage at the device.
Always attach the protective earth!
The PE cable must be fitted with a 6.35 mm blade terminal with retainer tab.
