6.3 HDBaseT™ Extender Kit
An extender kit EPCZEBE1 is available as an option for the v200-Cabinet monitor.

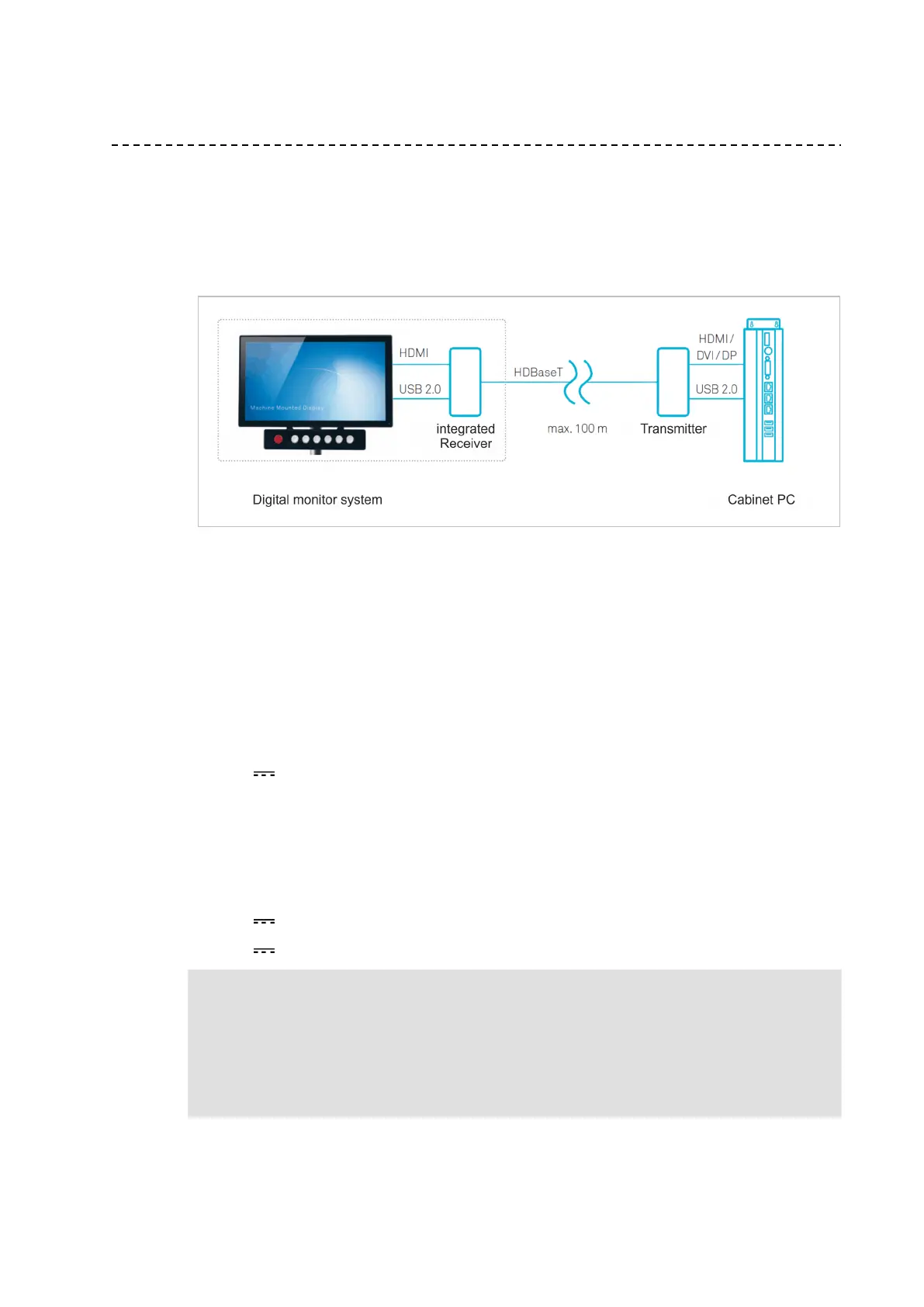

This extender kit comprising a transmitter and receiver module allows image signals to be
transmitted in the HDBaseT™ standard.
6.3.1 Contents of kit:
Please check that all of the following components are contained in the packaging:
HD Base-T transmitter set (TX)
1 x HDBase-T transmitter module (TX)
1 x HDMI > HDMI cable (1 m)
1 x display port > HDMI cable (1 m)
1 x USB host > USB slave cable (1 m)
1 x 24 V
power supply plug
HD Base-T receiver set (RX)
1 x HDBase-T receiver module (RX)
1 x HDMI > HDMI cable (25 cm)
1 x USB host > USB slave cable (10 m)
1 x 24 V
power supply cable (10 cm)
1 x 24 V
power supply plug
 Note
The following CAT cables are recommended for operation:
CAT6a cable 80 m with min. 24AWG / 27AWG
CAT7 cable up to 100 m with min. 24AWG
Accessories
1 x DVI > HDMI cable (optional)
