Lenze v200-C - Status Indicators on Receiver Module

Interfaces
HDBaseT™ Extender Kit
Lenze • BA v200-C v800-.C • 1.1 87

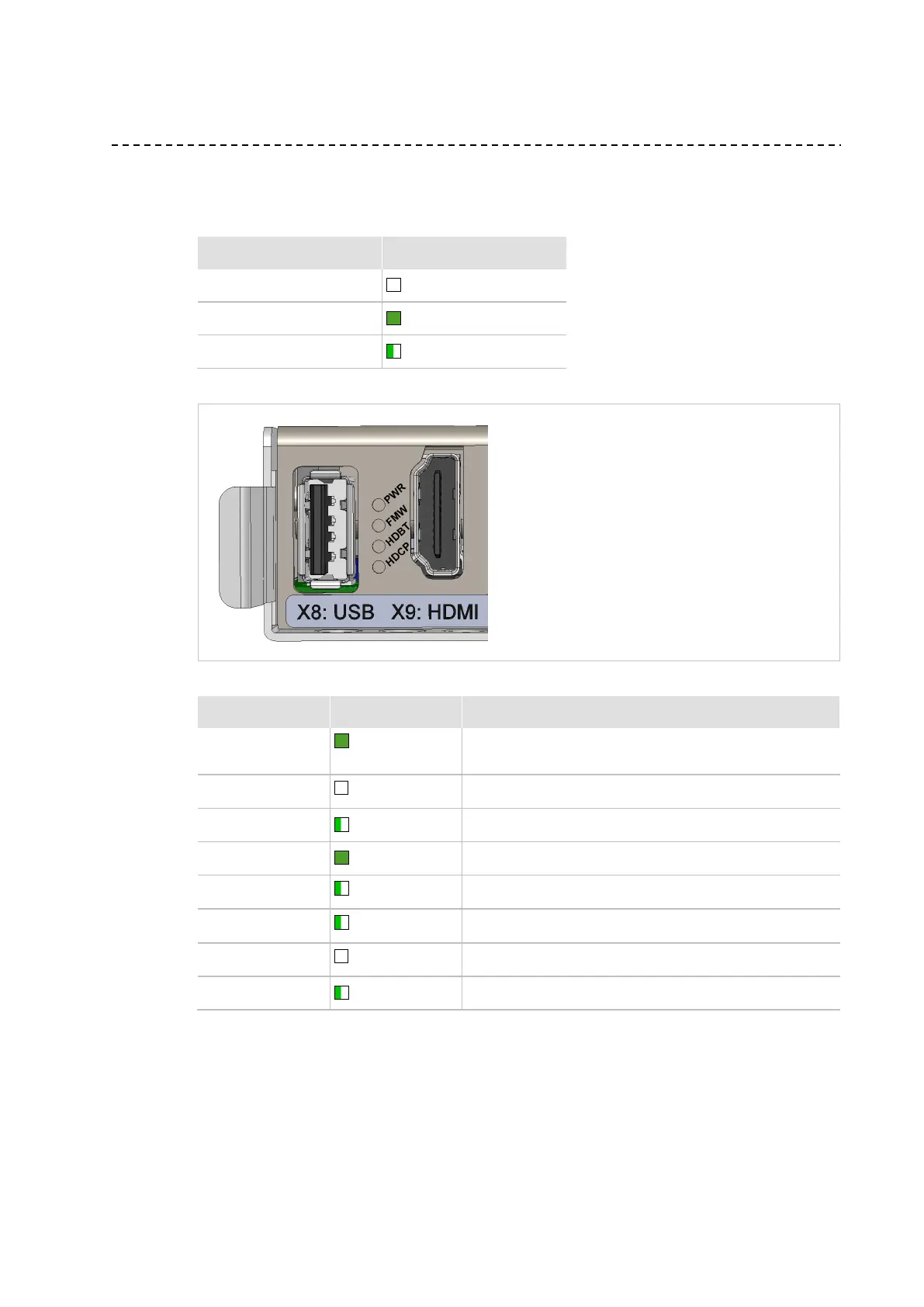

6.3.7 Status indicators on receiver module
The transmitter module has status indicators. The table below lists the various system states.
LED status Representation
off
permanently lit
flashing
Signal Action
PWR
(blue)
The device is supplied with voltage via POWER and is
ready for operation
FW
(off)
No firmware action
Firmware is loaded and ready for operation
HDBT
HDBaseT™ link present
(slow)
Low Power Mode
(fast)
Ethernet fallback-mode
(off)
No link
HDCP
Graphics link is present
