Interfaces
HDBaseT™ Extender Kit
84
Lenze • BA v200-C v800-.C • 1.1

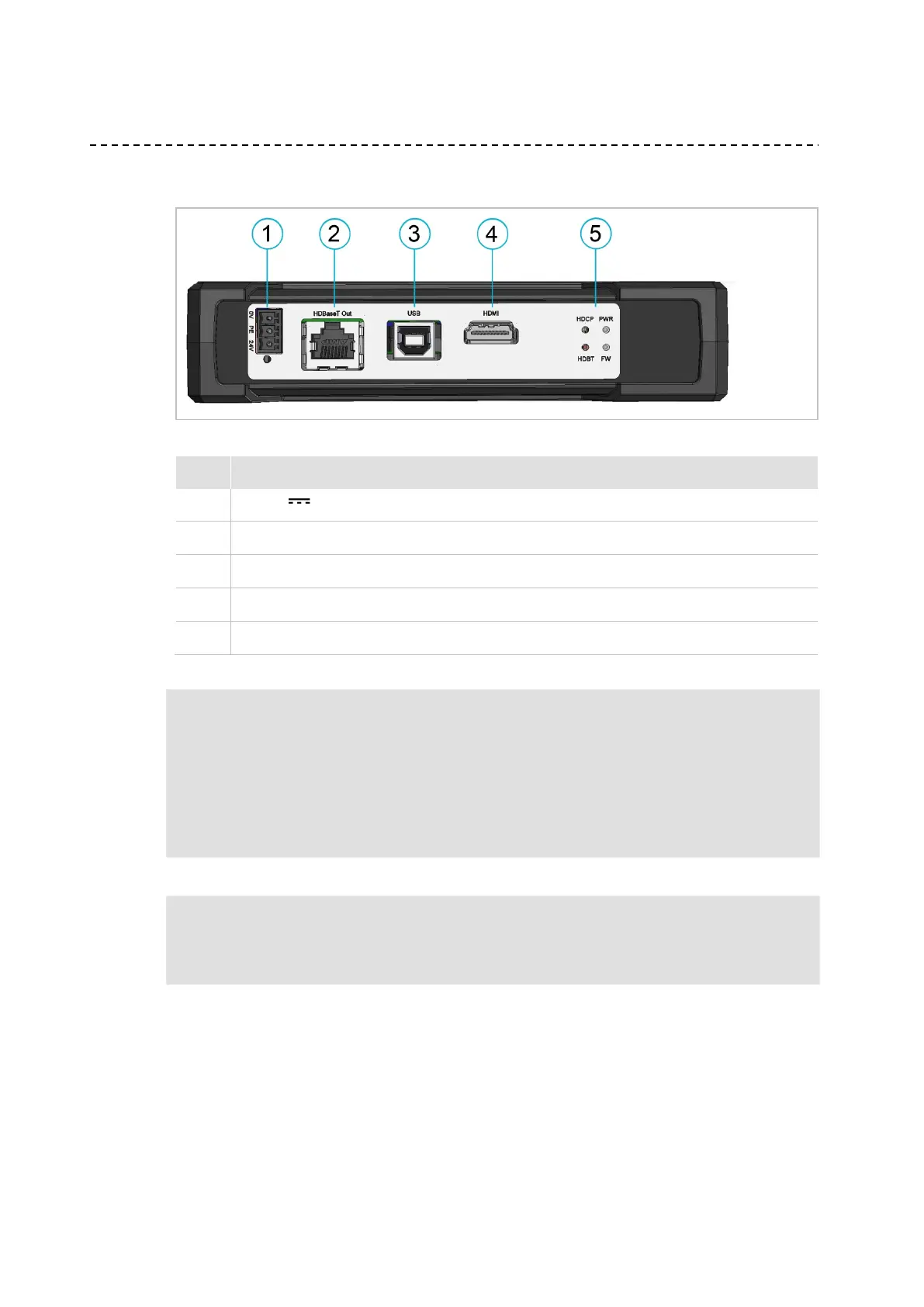

6.3.3 Interfaces of transmitter module
Interfaces of transmitter
No. Description
1
1 x 24 V
2
1 x HDBaseT™ 100 Mbit
3
1 x USB 2.0
4
1 x HDMI
5
SYS-LEDs
Attention
Hazard due to excessive current!
Excessive current can cause overloading of the electronics which could then result in injury or
damage.
The device should only be operated with a power supply that complies with NEC Class 2.
Note
The external power adapter must be protected with a 3 A fuse (slow-blow).
