Interfaces
HDBaseT™ Extender Kit
82
Lenze • BA v200-C v800-.C • 1.1

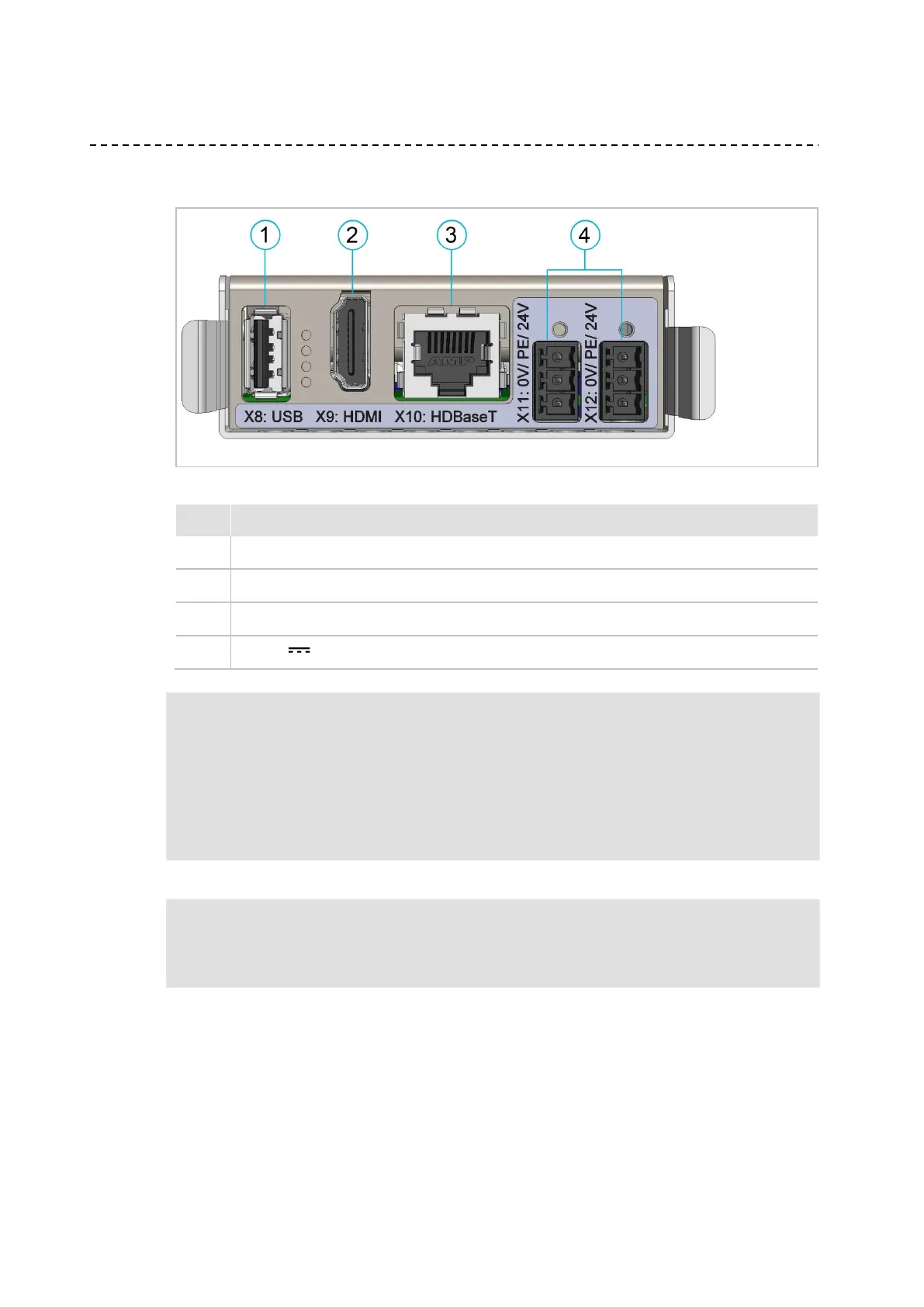

6.3.2 Interfaces of receiver module
Interfaces of receiver
No. Description
1 1 x USB 2.0
2
1 x HDMI
3 1 x HDBaseT™ 100 Mbit
4 2 x .24 V connected in parallel
Attention
Hazard due to excessive current!
Excessive current can cause overloading of the electronics which could then result in injury or
damage.
The device should only be operated with a power supply that complies with NEC Class 2.
Note
The external power adapter must be protected with a 3 A fuse (slow-blow).
