6.2.5 Order of steps during commissioning
If no HDBased-T™ receiver module is to be used, commissioning must be performed in the
following sequence:
• •24 V
device: insert cable for power supply with cable end sleeves into terminals and
connect earthing.
• •Connect cable for serial / parallel data transmission and fasten the plugs to the sockets
• •Plug in all other required cables and secure against slipping out.
If a the optional HDBased-T™ receiver module is to be used, commissioning must be performed
in the following sequence:

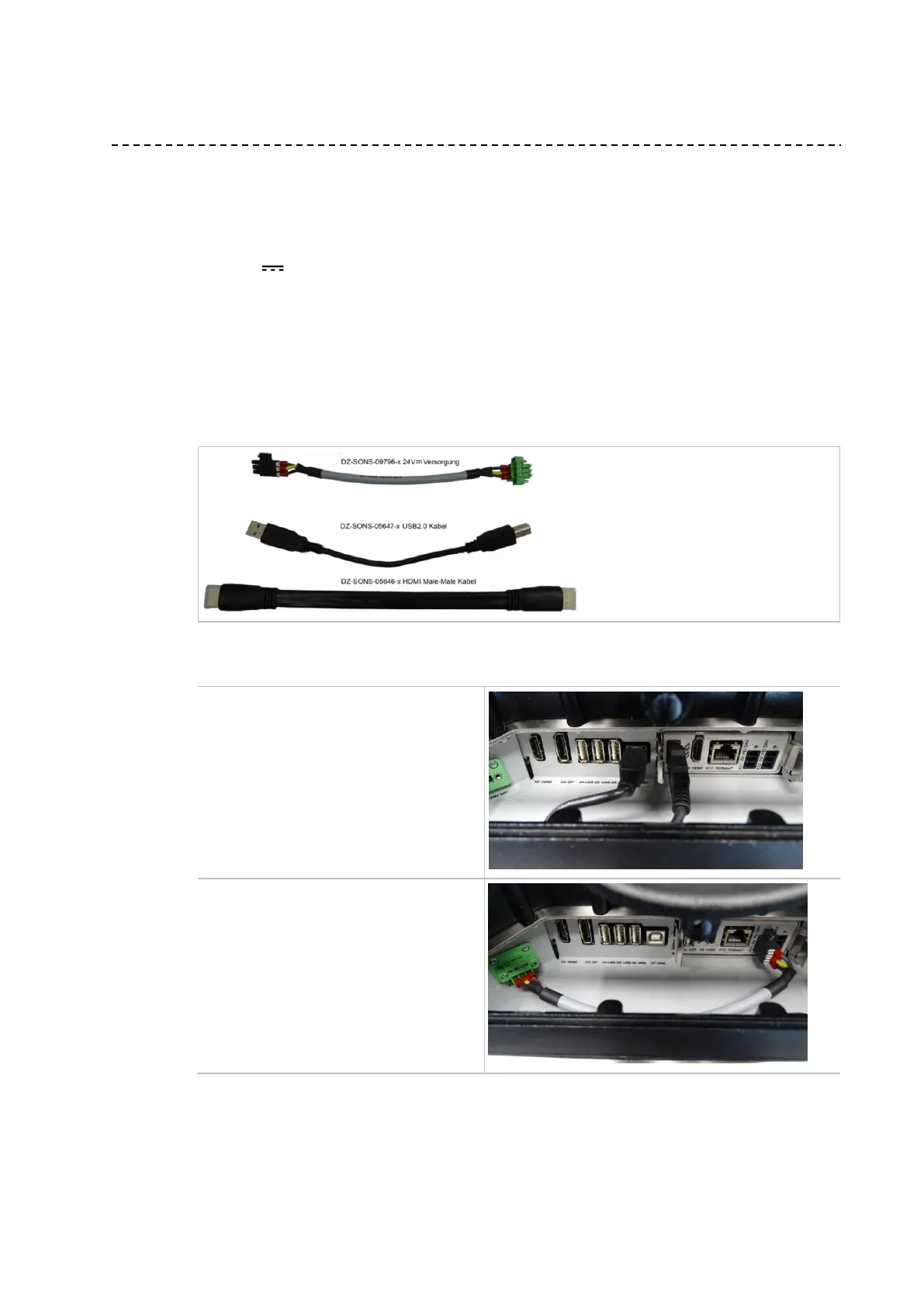

The following connecting cables are supplied with the receiver module:
Connect the cables in the following sequence:
1. Step USB cable
2. Step power supply
After plugging in the two plugs, screw in their
retaining screws finger-tight.
