6.1.2 Power supply
 Attention
Hazard due to excessive current!
Excessive current can cause overloading of the electronics which could then result in injury or
damage.
The device should only be operated with a power supply that complies with NEC Class 2.
The device must be supplied with 24V +/-25% (18 to 30 V) (NEC Class 2).
The power supply must be implemented via the 4-pole plug only
(4-pole plug with locking lever, green).

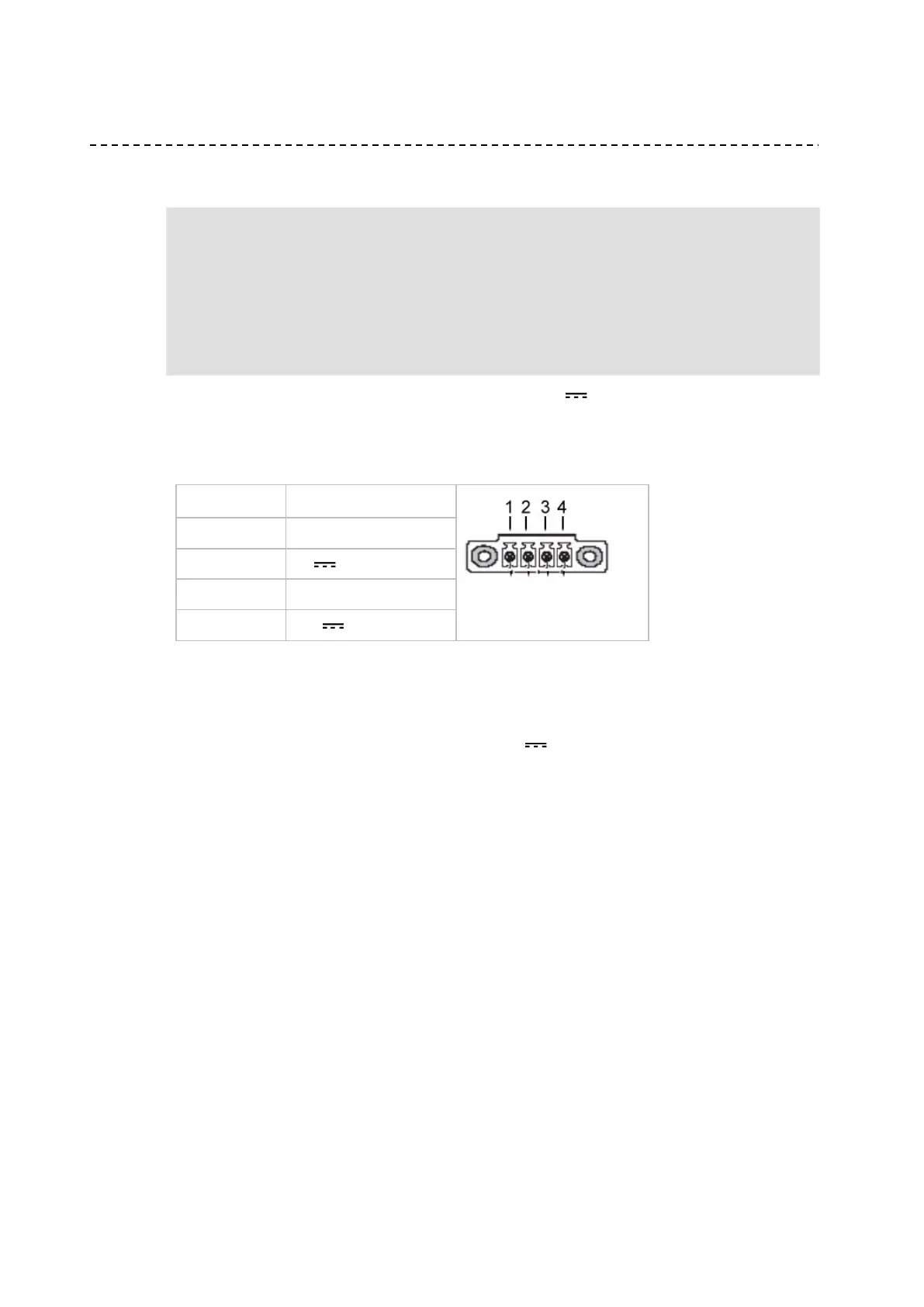

(The figure shows the socket inside the device).
Pin number Signal name
1 NC *
2 0 V
3 PE
4 24 V
* Prepared for future shutdown function of a UPS
Technical data:
Input voltage: 24V +/-25% (18 to 30 V)
(NEC Class 2)
Max. switch on current: 4 A
