6.2.1 Earth connection
Warning
Hazard due to overvoltage
If the protective earth is not attached, there is a danger of overvoltage at the device.
Always attach the protective earth!
The PE cable must be fitted with a 6.35 mm blade terminal with retainer tab.
6.2.2 Power supply
Attention
Hazard due to excessive current!
Excessive current can cause overloading of the electronics which could then result in injury or
damage.
The device should only be operated with a power supply that complies with NEC Class 2.
The device must be supplied with 24V +/-25% (18 to 30 V) (NEC Class 2).
The power supply must be implemented via the 4-pole plug only (4-pole plug with locking lever,
green). (The figure shows the socket inside the device).

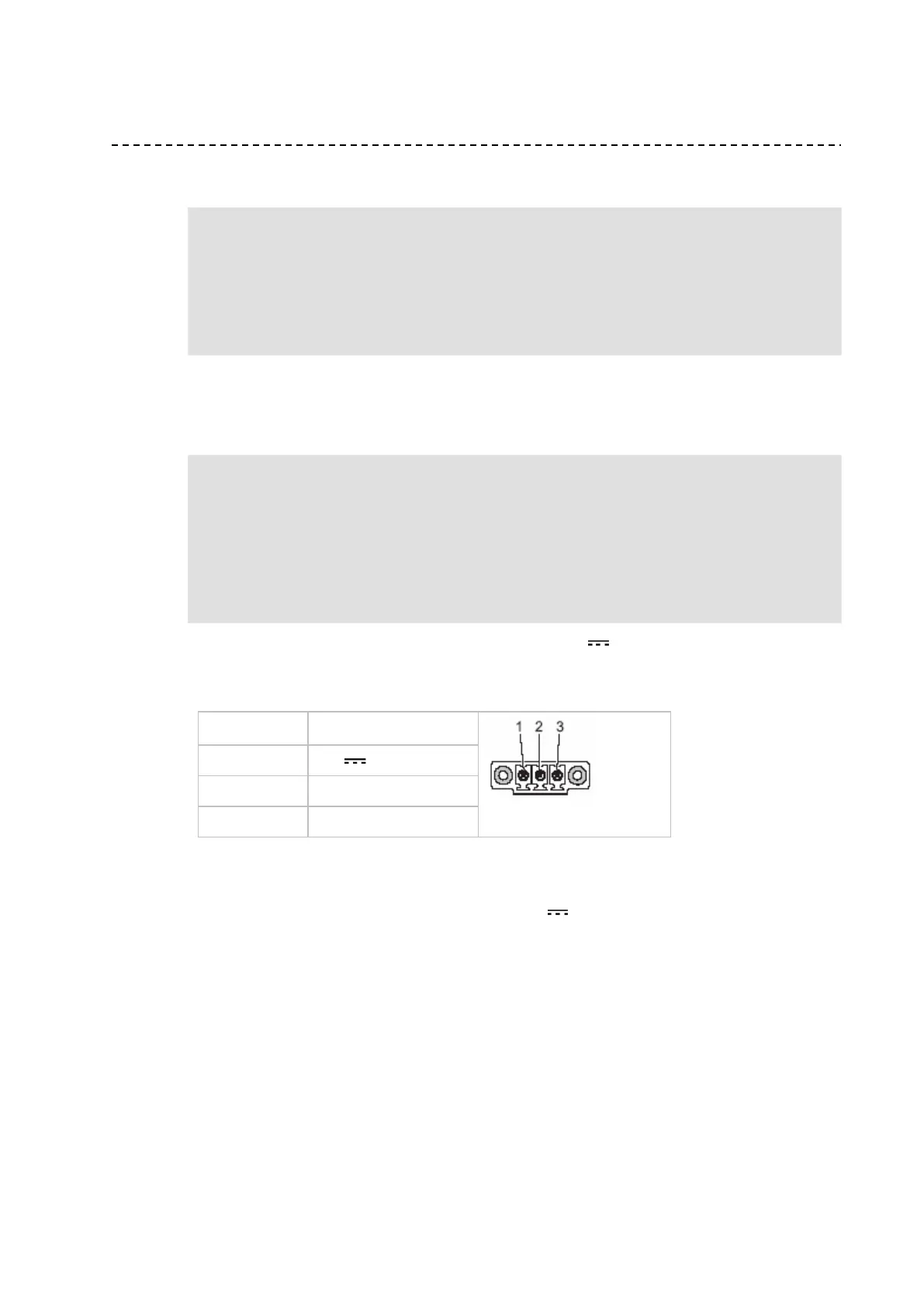

Pin number Signal name
1 24 V
2 PE
3 0 V
Technical data:
Input voltage: 24V +/-25% (18 to 30 V)
(NEC Class 2)
Max. switch on current: 3 A
