Interfaces
HDBaseT™ Extender Kit
Lenze • BA v200-C v800-.C • 1.1 83
The device must be supplied with 24V +/-25% (18 to 30 V) (NEC Class 2).

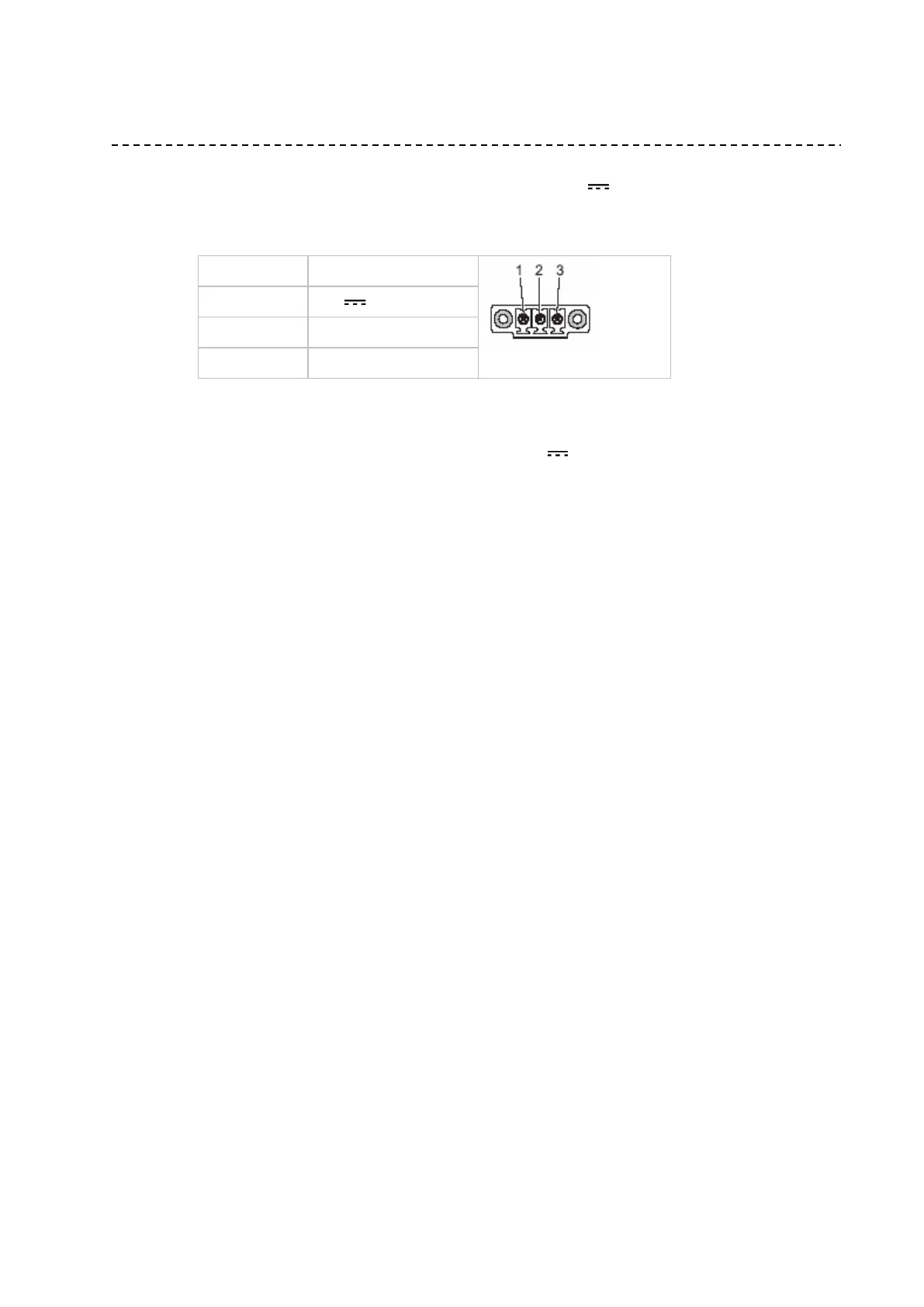

The power supply must be implemented via the 3-pole plug only (3-pole plug, black). (The
figure shows the socket inside the device).
Pin number Signal name
1 24 V
2 PE
3 0 V
Technical data:
Input voltage: 24V +/-25% (18 to 30 V)
(NEC Class 2)
Max. switch on current: 0,8 A
