Sensor 1 test

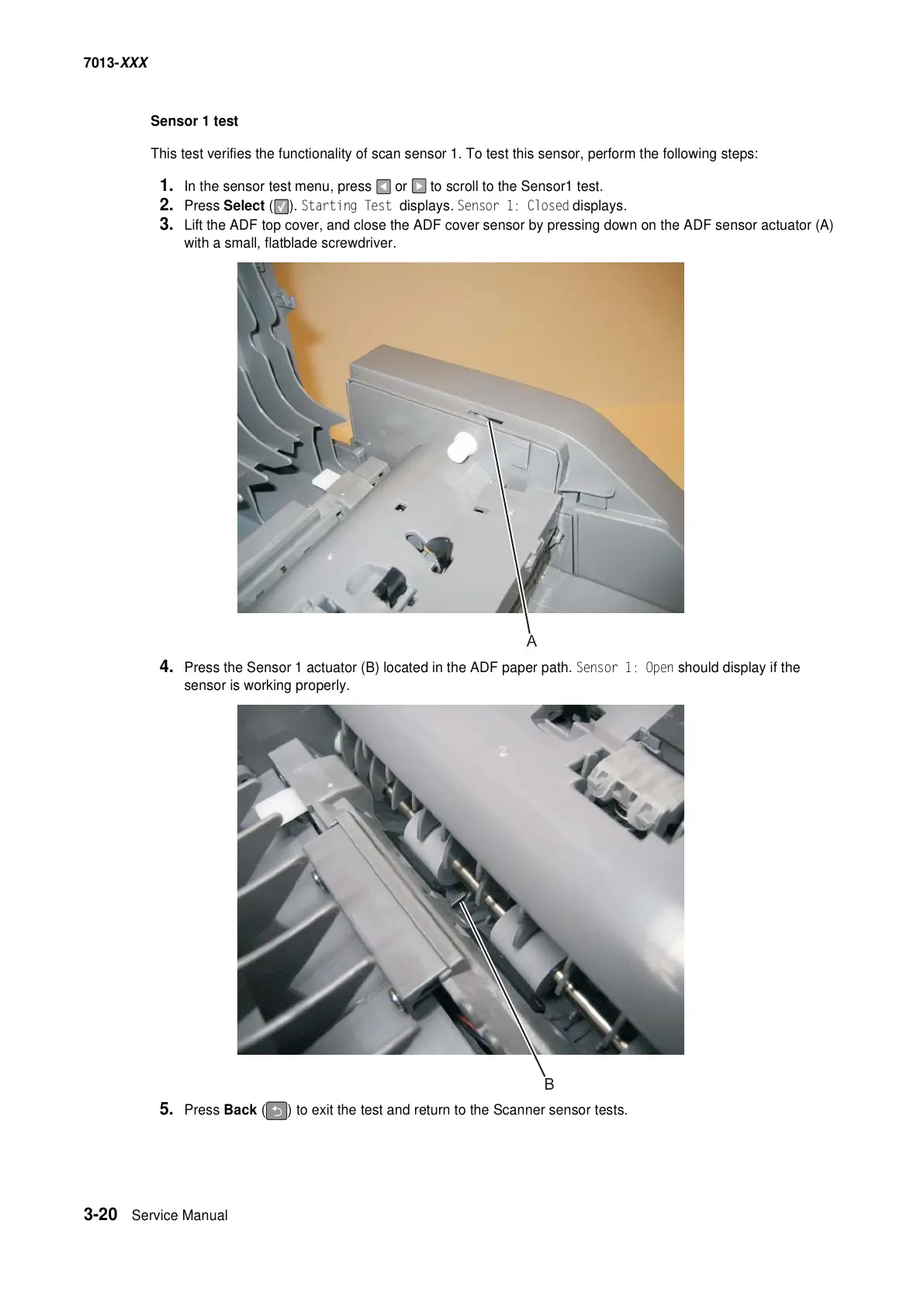

This test verifies the functionality of scan sensor 1. To test this sensor, perform the following steps:
1. In the sensor test menu, press or to scroll to the Sensor1 test.
2. Press Select ( ). Starting Test displays. Sensor 1: Closed displays.
3. Lift the ADF top cover, and close the ADF cover sensor by pressing down on the ADF sensor actuator (A)
with a small, flatblade screwdriver.
4. Press the Sensor 1 actuator (B) located in the ADF paper path. Sensor 1: Open should display if the
sensor is working properly.
5. Press Back ( ) to exit the test and return to the Scanner sensor tests.
