4-44 Service Manual
7013-XXX

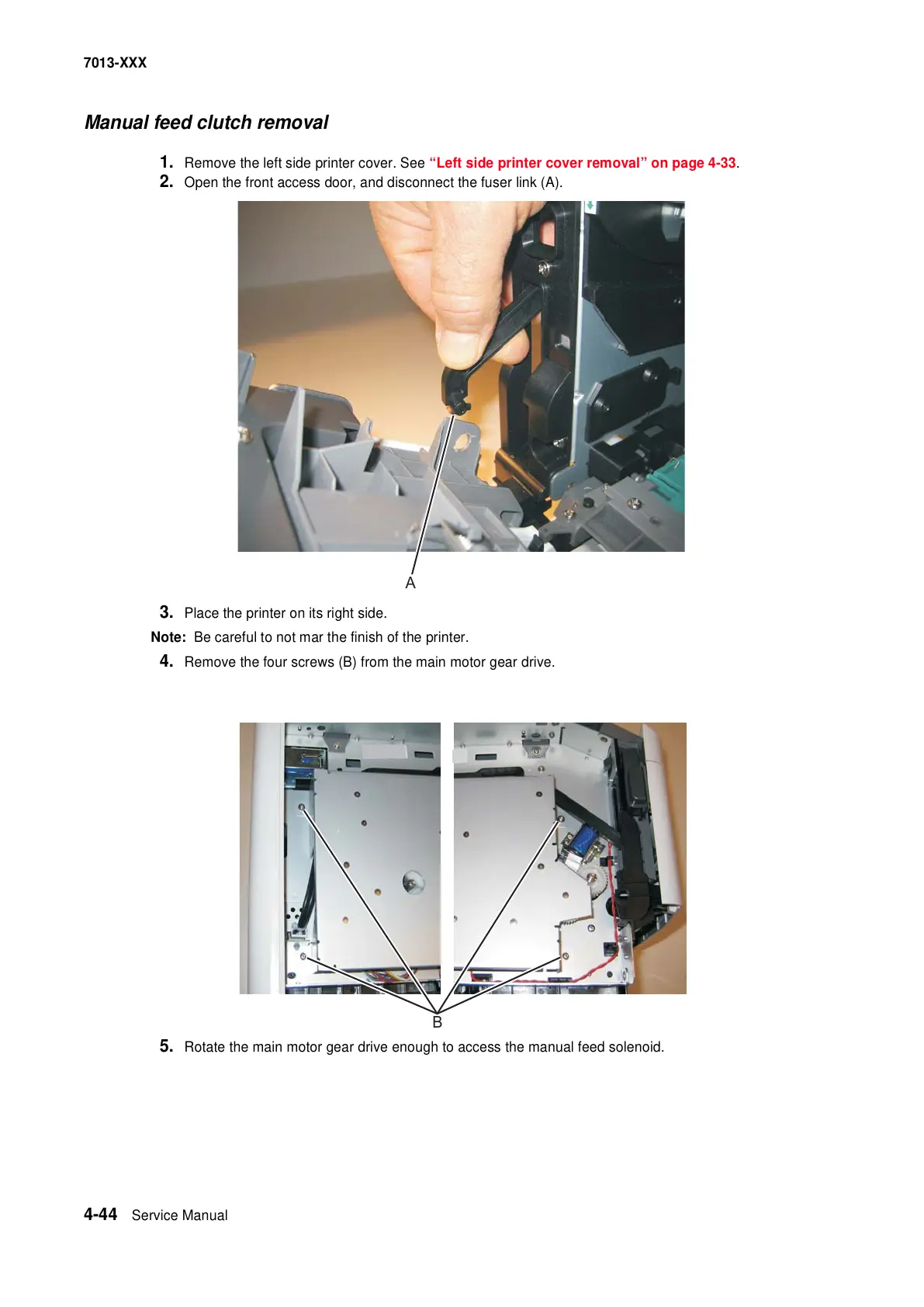

Manual feed clutch removal
1. Remove the left side printer cover. See “Left side printer cover removal” on page 4-33.
2. Open the front access door, and disconnect the fuser link (A).
3. Place the printer on its right side.
Note: Be careful to not mar the finish of the printer.
4. Remove the four screws (B) from the main motor gear drive.
5. Rotate the main motor gear drive enough to access the manual feed solenoid.
A
B
