4-14 Service Manual
7013-XXX

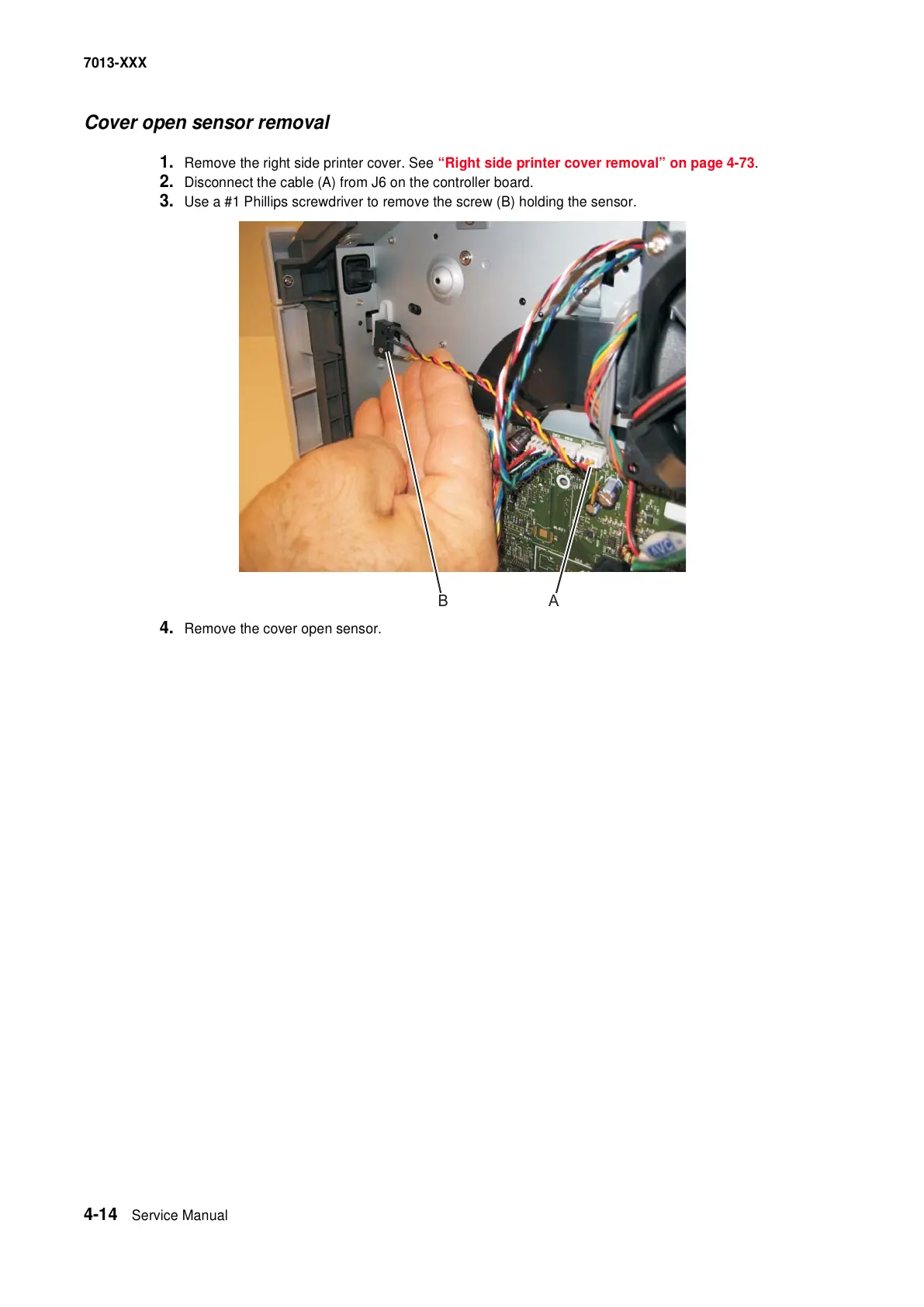

Cover open sensor removal
1. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
2. Disconnect the cable (A) from J6 on the controller board.
3. Use a #1 Phillips screwdriver to remove the screw (B) holding the sensor.
4. Remove the cover open sensor.
AB
