Lexmark X364dn - The Paper Absorbed Moisture Due to High Humidity; Print Is Too Dark; Check the Paper; Check the Paper Type Setting

Repair information 4-65
7013-XXX

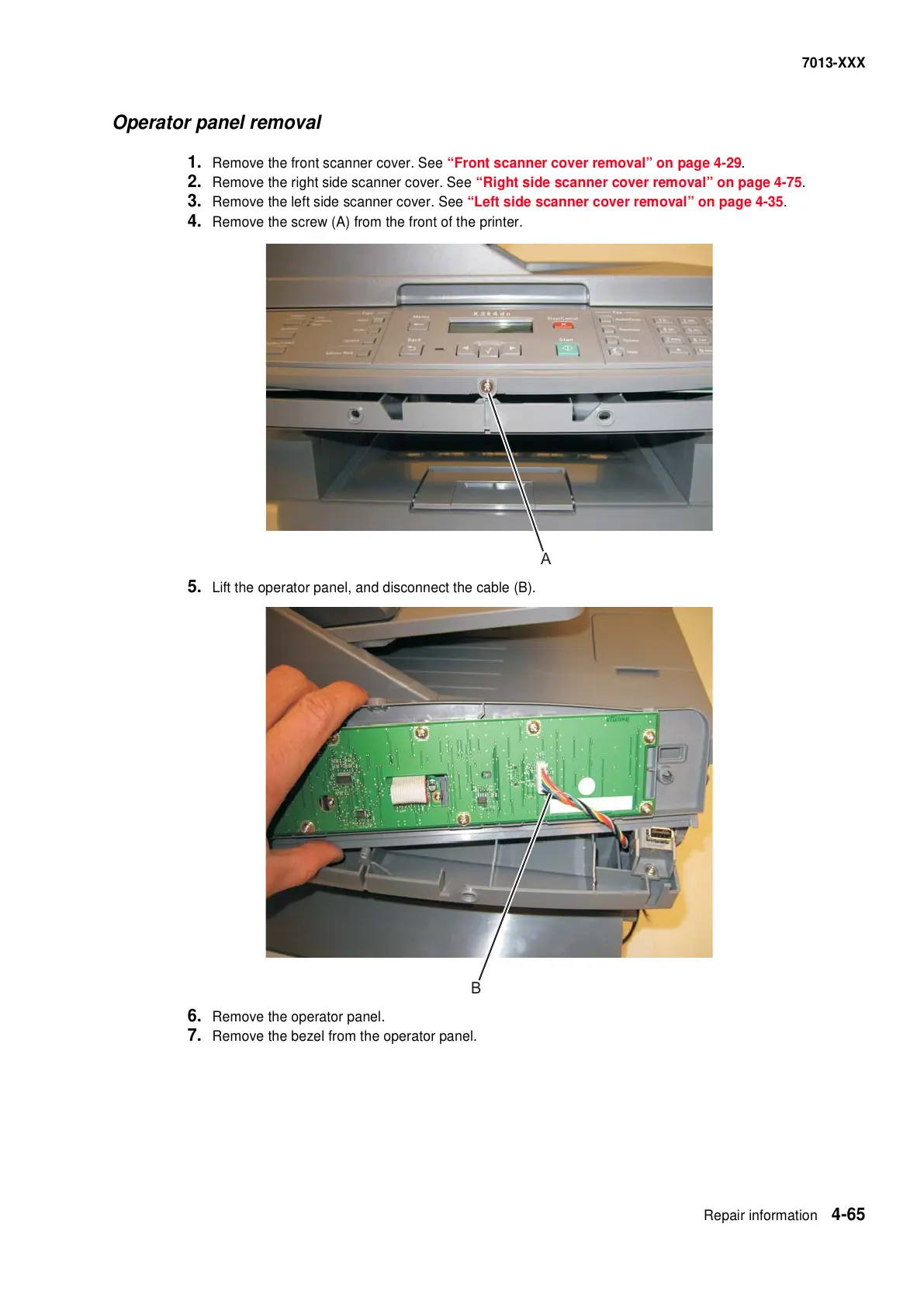

Operator panel removal
1. Remove the front scanner cover. See “Front scanner cover removal” on page 4-29.
2. Remove the right side scanner cover. See “Right side scanner cover removal” on page 4-75.
3. Remove the left side scanner cover. See “Left side scanner cover removal” on page 4-35.
4. Remove the screw (A) from the front of the printer.
5. Lift the operator panel, and disconnect the cable (B).
6. Remove the operator panel.
7. Remove the bezel from the operator panel.
A
B
