Repair information 4-7
7013-XXX

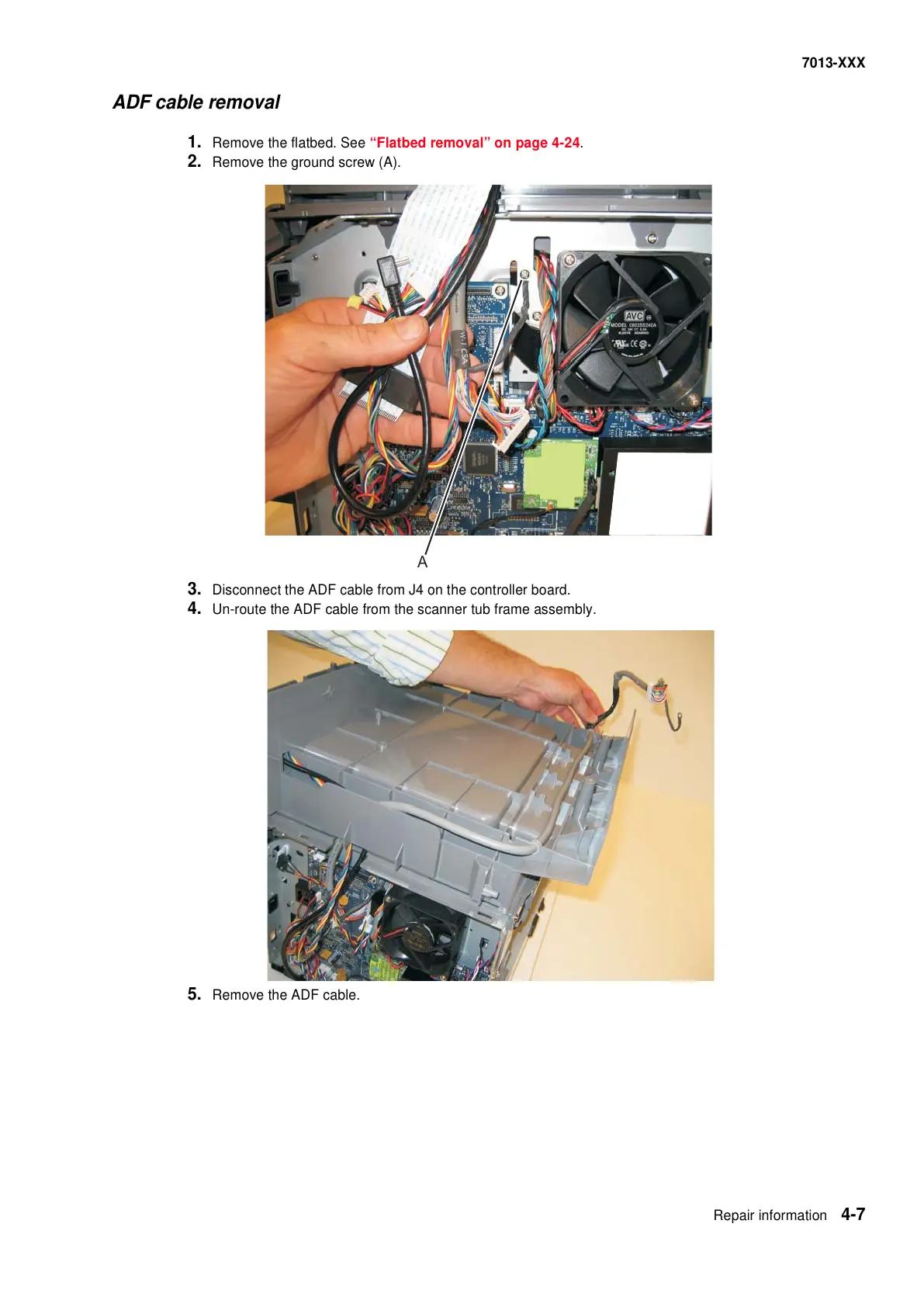

ADF cable removal
1. Remove the flatbed. See “Flatbed removal” on page 4-24.
2. Remove the ground screw (A).
3. Disconnect the ADF cable from J4 on the controller board.
4. Un-route the ADF cable from the scanner tub frame assembly.
5. Remove the ADF cable.
A
