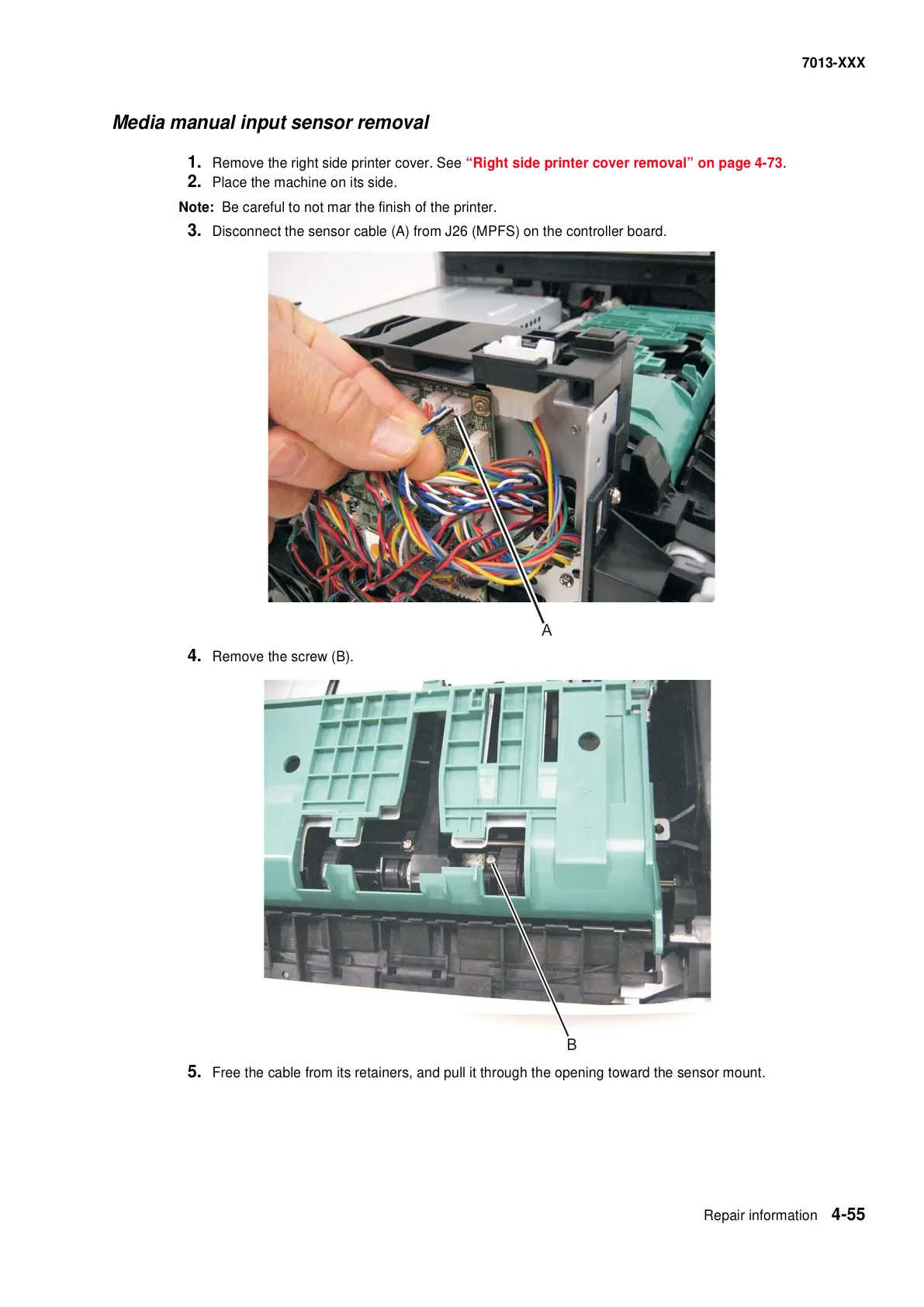

Media manual input sensor removal
1. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
2. Place the machine on its side.
Note: Be careful to not mar the finish of the printer.
3. Disconnect the sensor cable (A) from J26 (MPFS) on the controller board.
4. Remove the screw (B).
5. Free the cable from its retainers, and pull it through the opening toward the sensor mount.
A
B
