Lexmark X364dn - Unsupported USB Device, Please Remove; 31.yy Replace Defective or Missing Cartridge; 34 Short Paper; 35 Insufficient Memory to Support Resource Save Feature

4-42 Service Manual
7013-XXX

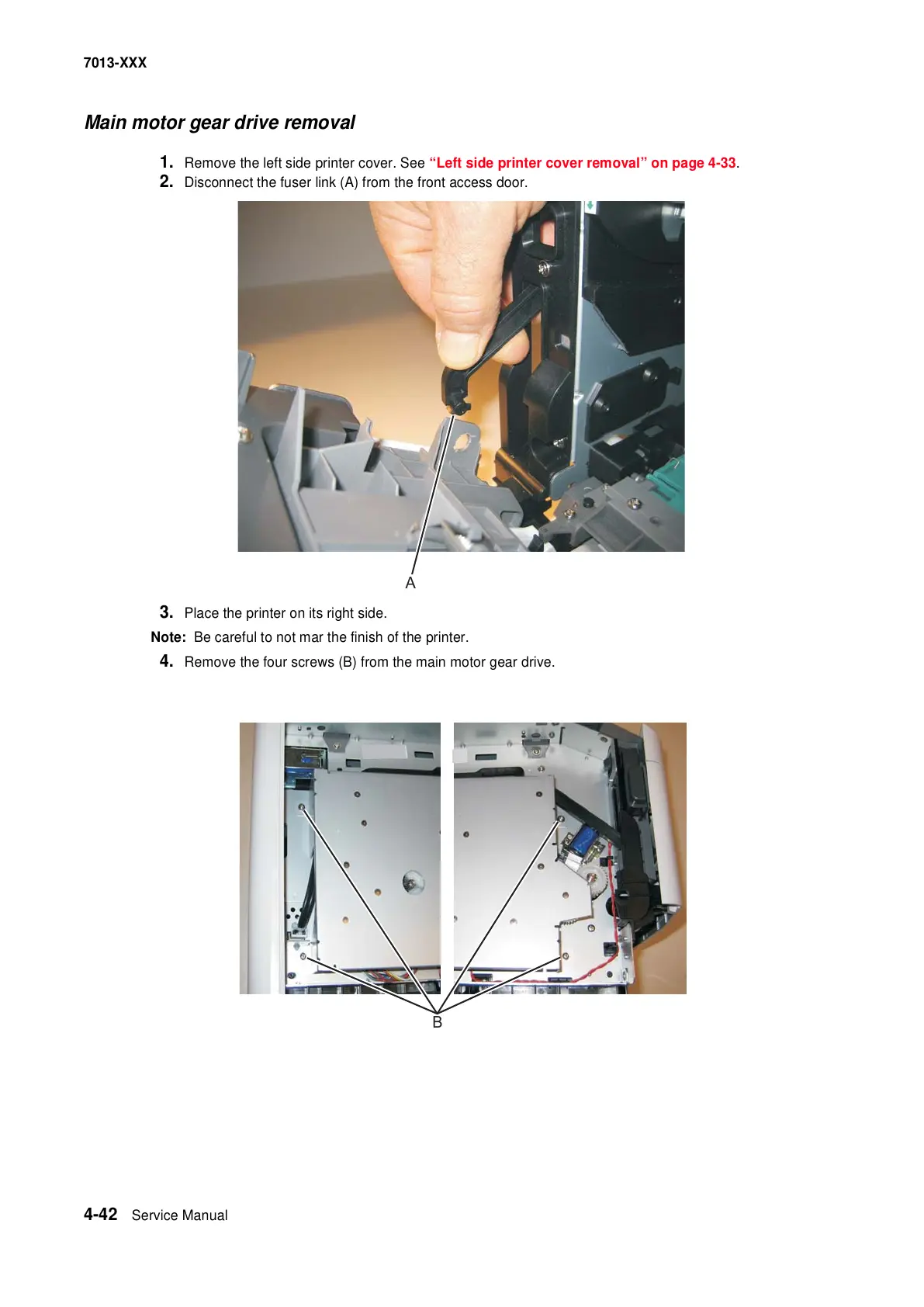

Main motor gear drive removal
1. Remove the left side printer cover. See “Left side printer cover removal” on page 4-33.
2. Disconnect the fuser link (A) from the front access door.
3. Place the printer on its right side.
Note: Be careful to not mar the finish of the printer.
4. Remove the four screws (B) from the main motor gear drive.
A
B
