Lexmark X364dn - LVPS;HVPS Removal

Repair information 4-35
7013-XXX

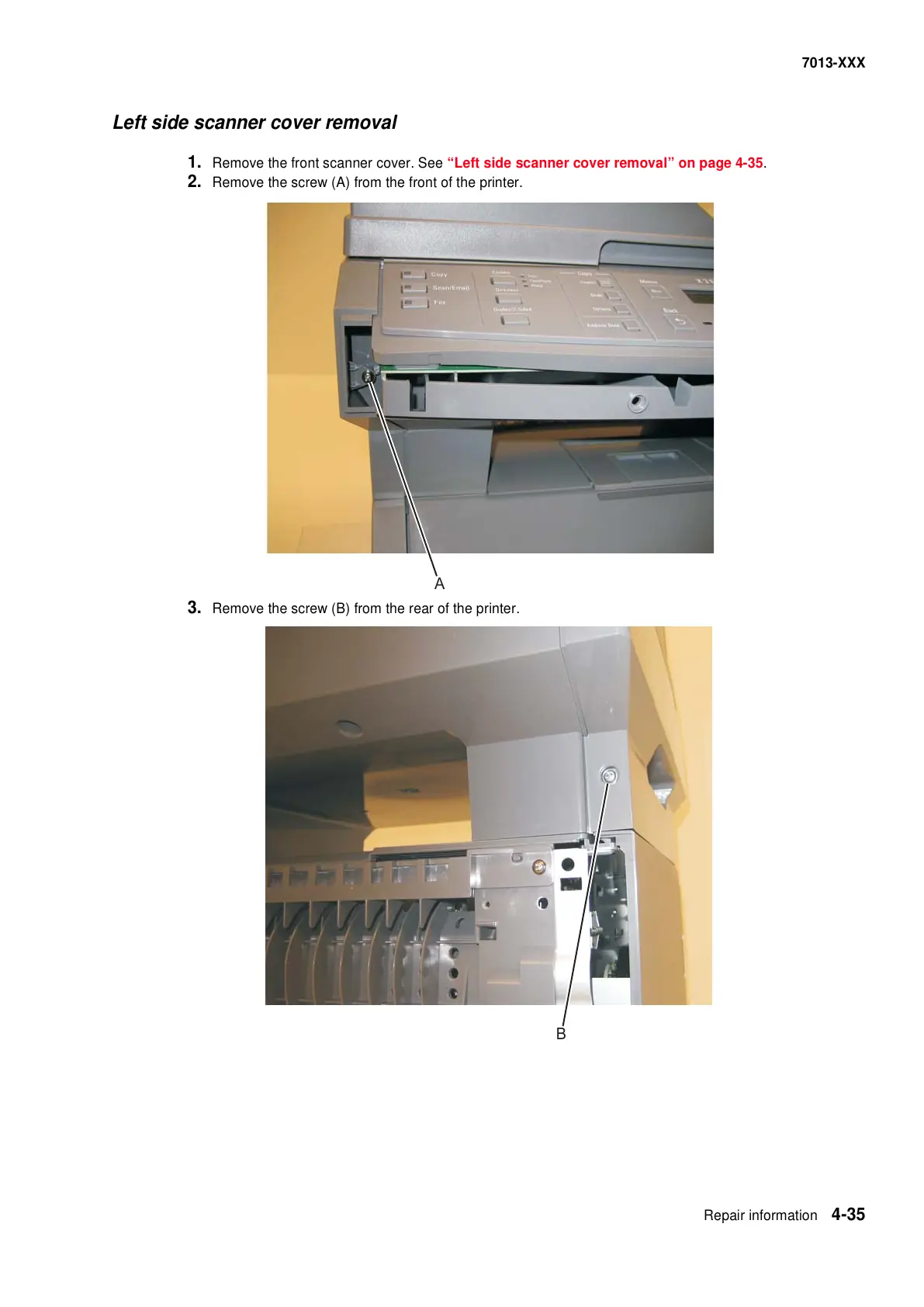

Left side scanner cover removal
1. Remove the front scanner cover. See “Left side scanner cover removal” on page 4-35.
2. Remove the screw (A) from the front of the printer.
3. Remove the screw (B) from the rear of the printer.
A
B
