Lexmark X364dn Service Manual

Diagnostics information 2-37
7013-XXX

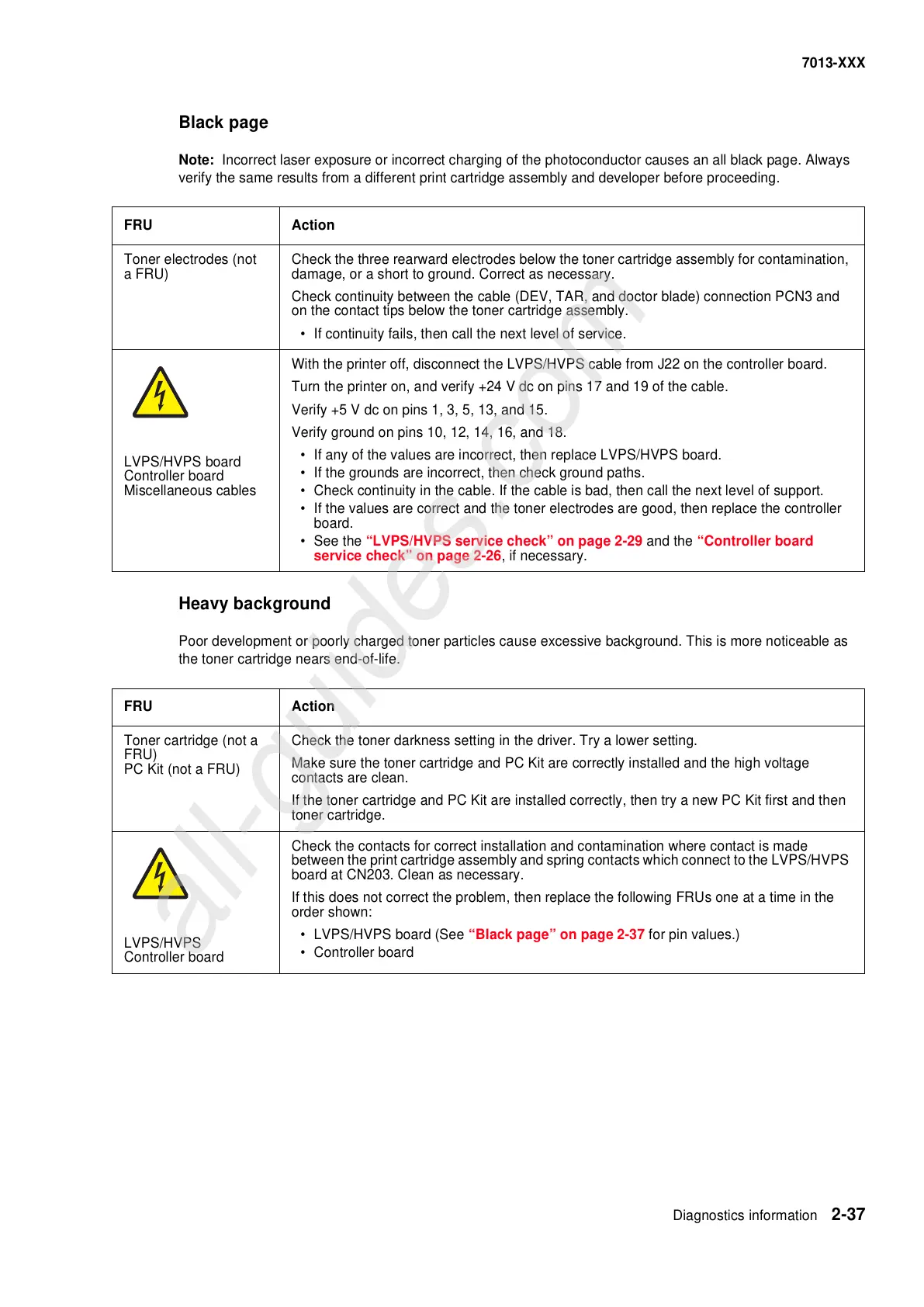

Black page
Note: Incorrect laser exposure or incorrect charging of the photoconductor causes an all black page. Always
verify the same results from a different print cartridge assembly and developer before proceeding.
Heavy background
Poor development or poorly charged toner particles cause excessive background. This is more noticeable as
the toner cartridge nears end-of-life.
FRU Action
Toner electrodes (not
a FRU)
Check the three rearward electrodes below the toner cartridge assembly for contamination,
damage, or a short to ground. Correct as necessary.
Check continuity between the cable (DEV, TAR, and doctor blade) connection PCN3 and
on the contact tips below the toner cartridge assembly.
• If continuity fails, then call the next level of service.
LVPS/HVPS board
Controller board
Miscellaneous cables
With the printer off, disconnect the LVPS/HVPS cable from J22 on the controller board.
Turn the printer on, and verify +24 V dc on pins 17 and 19 of the cable.
Verify +5 V dc on pins 1, 3, 5, 13, and 15.
Verify ground on pins 10, 12, 14, 16, and 18.
• If any of the values are incorrect, then replace LVPS/HVPS board.
• If the grounds are incorrect, then check ground paths.
• Check continuity in the cable. If the cable is bad, then call the next level of support.
• If the values are correct and the toner electrodes are good, then replace the controller
board.
• See the “LVPS/HVPS service check” on page 2-29 and the “Controller board
service check” on page 2-26, if necessary.
FRU Action
Toner cartridge (not a
FRU)
PC Kit (not a FRU)
Check the toner darkness setting in the driver. Try a lower setting.
Make sure the toner cartridge and PC Kit are correctly installed and the high voltage
contacts are clean.
If the toner cartridge and PC Kit are installed correctly, then try a new PC Kit first and then
toner cartridge.
LVPS/HVPS
Controller board
Check the contacts for correct installation and contamination where contact is made
between the print cartridge assembly and spring contacts which connect to the LVPS/HVPS
board at CN203. Clean as necessary.
If this does not correct the problem, then replace the following FRUs one at a time in the
order shown:
• LVPS/HVPS board (See “Black page” on page 2-37 for pin values.)
• Controller board
All manuals and user guides at all-guides.com
all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
