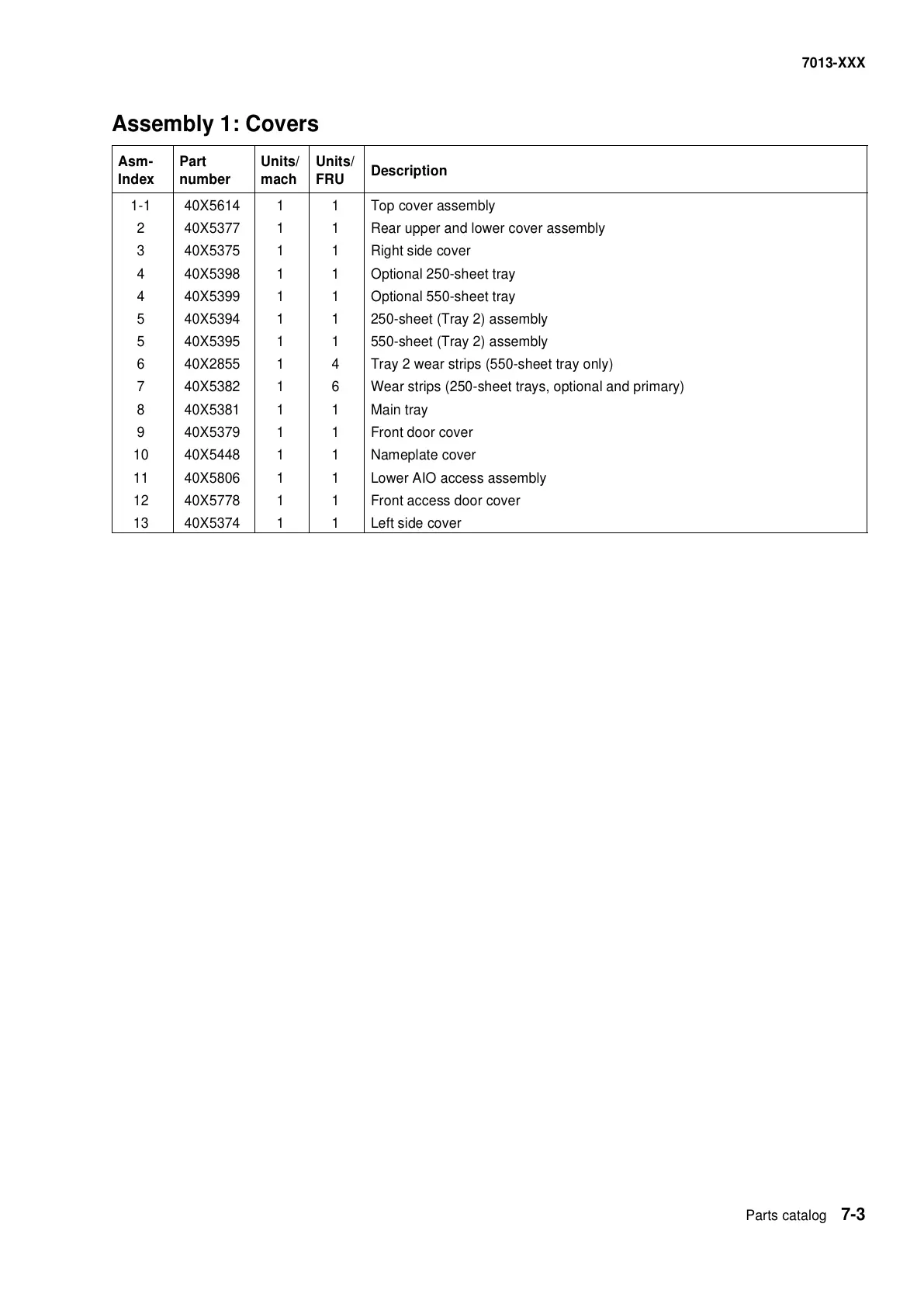

Parts catalog 7-3
7013-XXX
Assembly 1: Covers
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
1-1 40X5614 1 1 Top cover assembly
2 40X5377 1 1 Rear upper and lower cover assembly
3 40X5375 1 1 Right side cover
4 40X5398 1 1 Optional 250-sheet tray
4 40X5399 1 1 Optional 550-sheet tray
5 40X5394 1 1 250-sheet (Tray 2) assembly
5 40X5395 1 1 550-sheet (Tray 2) assembly
6 40X2855 1 4 Tray 2 wear strips (550-sheet tray only)
7 40X5382 1 6 Wear strips (250-sheet trays, optional and primary)
8 40X5381 1 1 Main tray
9 40X5379 1 1 Front door cover
10 40X5448 1 1 Nameplate cover
11 40X5806 1 1 Lower AIO access assembly
12 40X5778 1 1 Front access door cover
13 40X5374 1 1 Left side cover
