Repair information 4-63
7013-XXX

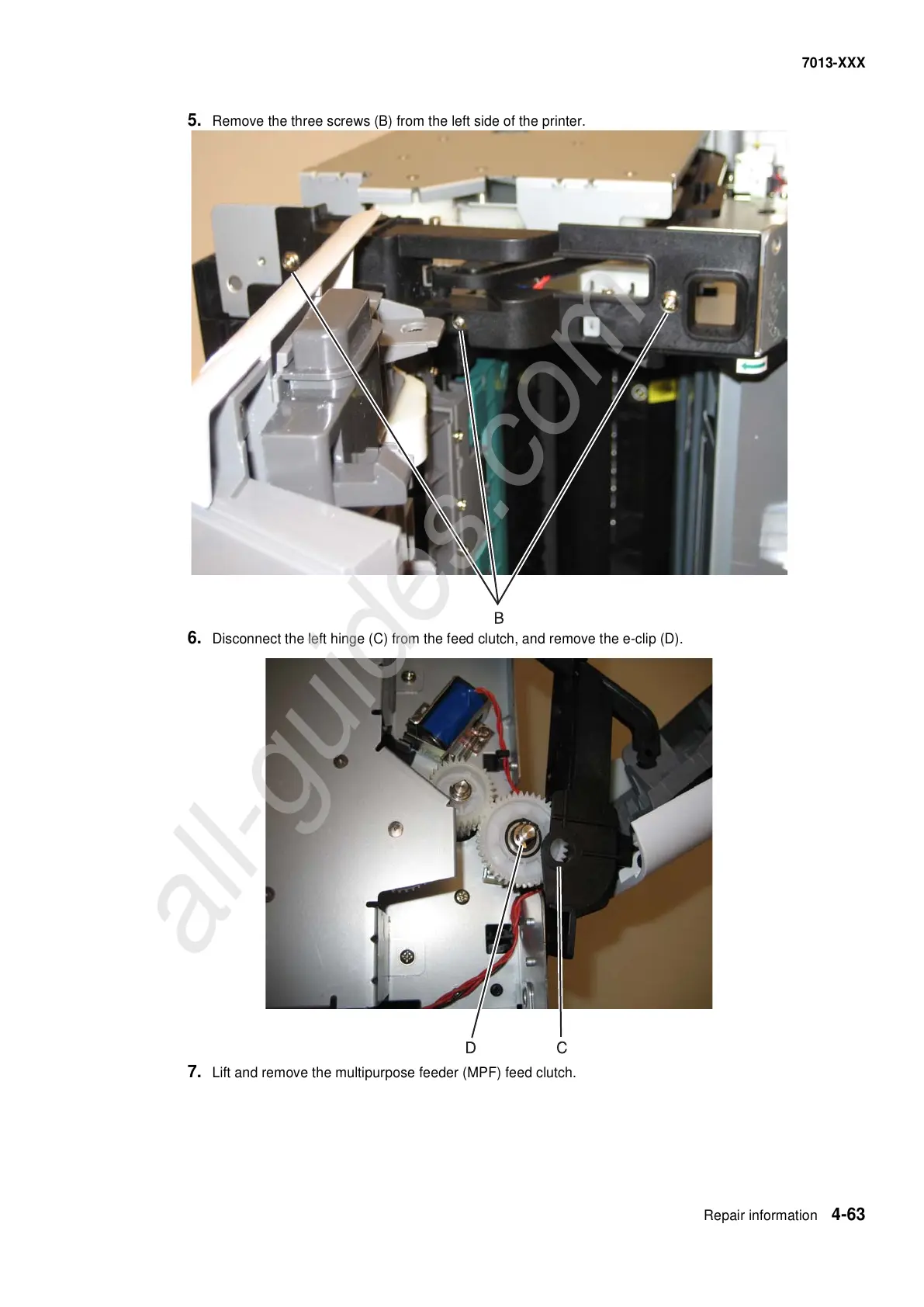

5. Remove the three screws (B) from the left side of the printer.
6. Disconnect the left hinge (C) from the feed clutch, and remove the e-clip (D).
7. Lift and remove the multipurpose feeder (MPF) feed clutch.
