4-26 Service Manual
7013-XXX

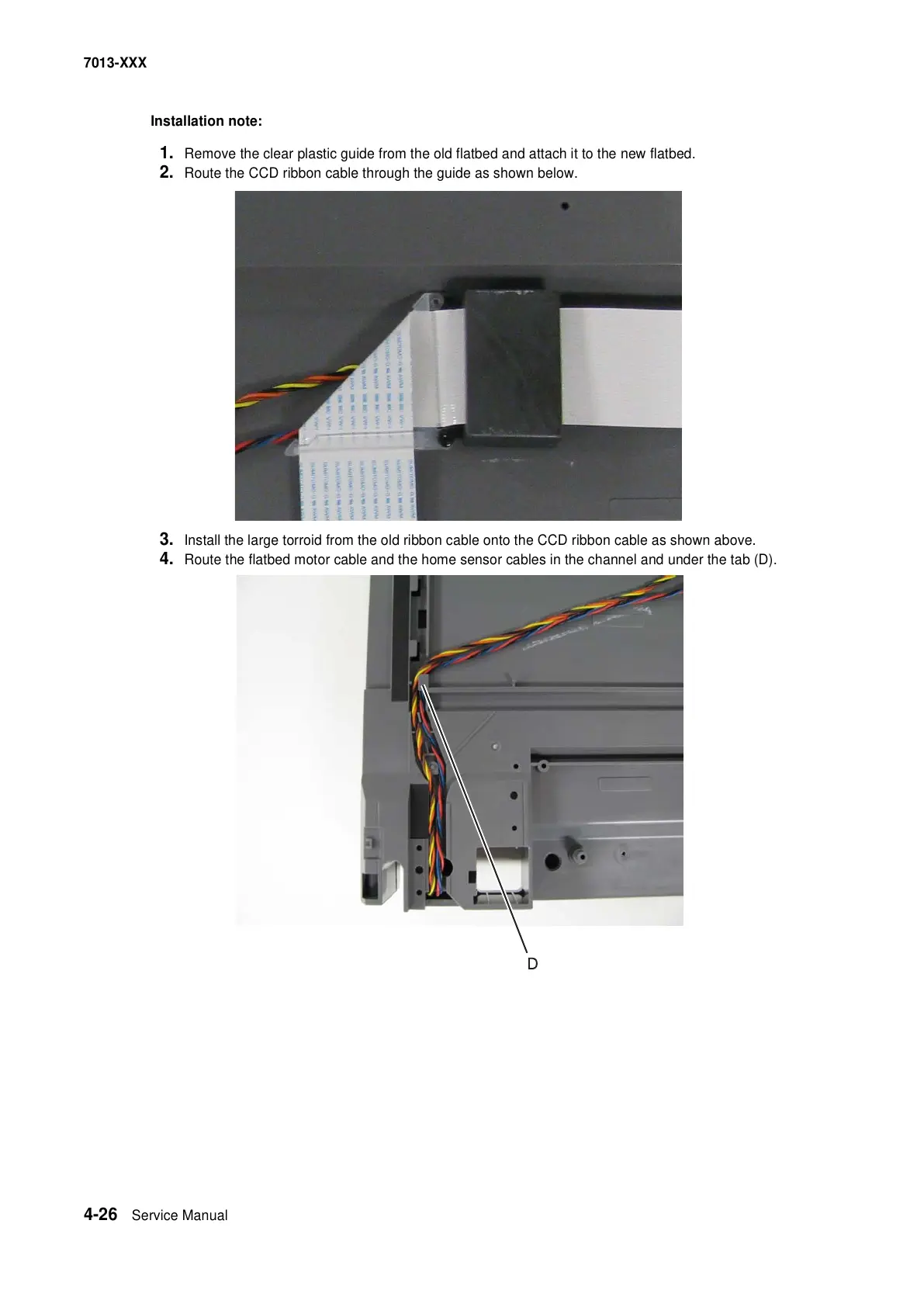

Installation note:
1. Remove the clear plastic guide from the old flatbed and attach it to the new flatbed.
2. Route the CCD ribbon cable through the guide as shown below.
3. Install the large torroid from the old ribbon cable onto the CCD ribbon cable as shown above.
4. Route the flatbed motor cable and the home sensor cables in the channel and under the tab (D).
