Lexmark X364dn - Assembly 2: Scanner

5-6 Service Manual
7013-XXX

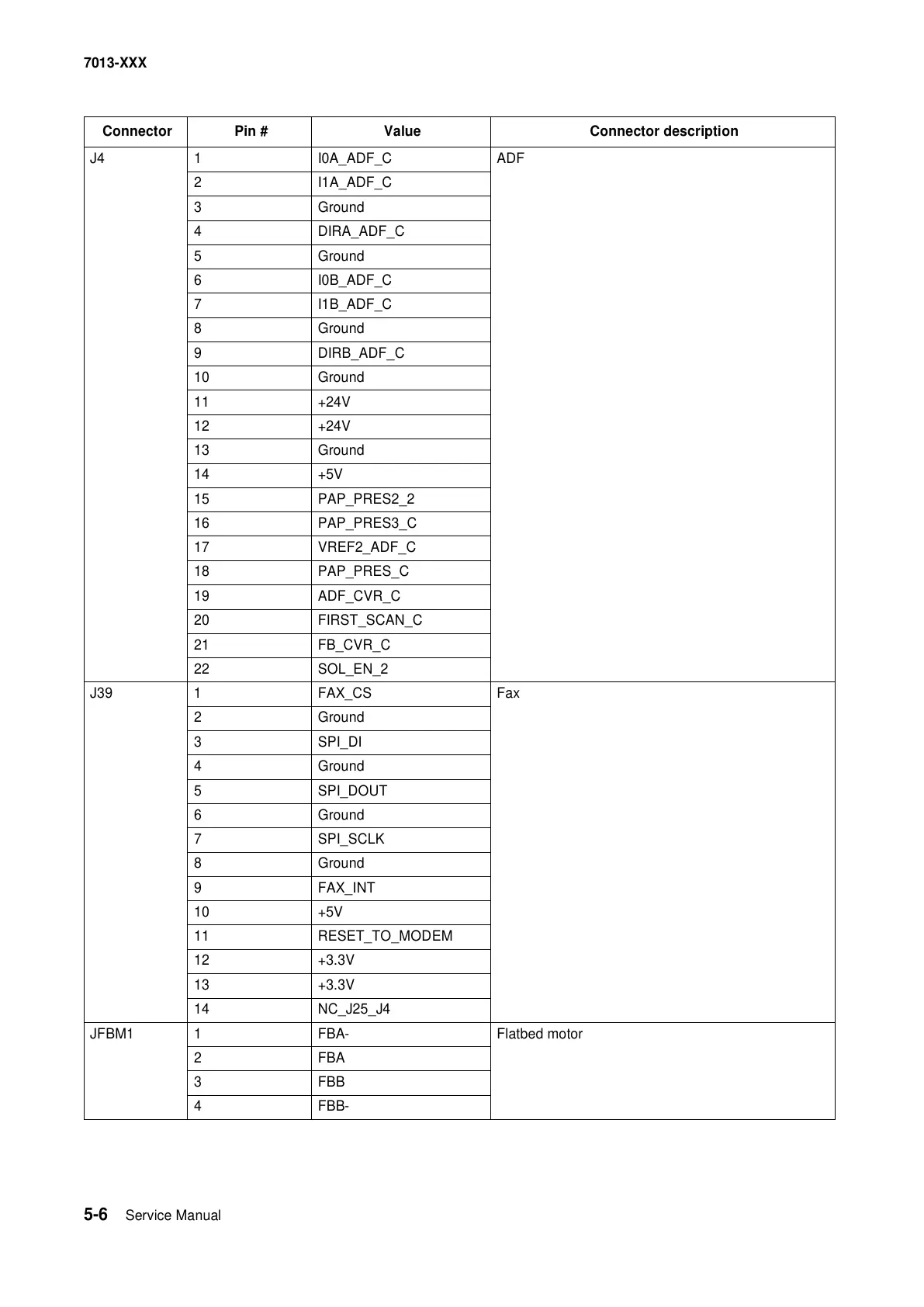

J4 1 I0A_ADF_C ADF
2 I1A_ADF_C
3 Ground
4 DIRA_ADF_C
5 Ground
6 I0B_ADF_C
7 I1B_ADF_C
8 Ground
9 DIRB_ADF_C
10 Ground
11 +24V
12 +24V
13 Ground
14 +5V
15 PAP_PRES2_2
16 PAP_PRES3_C
17 VREF2_ADF_C
18 PAP_PRES_C
19 ADF_CVR_C
20 FIRST_SCAN_C
21 FB_CVR_C
22 SOL_EN_2
J39 1 FAX_CS Fax
2 Ground
3 SPI_DI
4 Ground
5 SPI_DOUT
6 Ground
7 SPI_SCLK
8 Ground
9FAX_INT
10 +5V
11 RESET_TO_MODEM
12 +3.3V
13 +3.3V
14 NC_J25_J4
JFBM1 1 FBA- Flatbed motor
2FBA
3FBB
4FBB-
Connector Pin # Value Connector description
