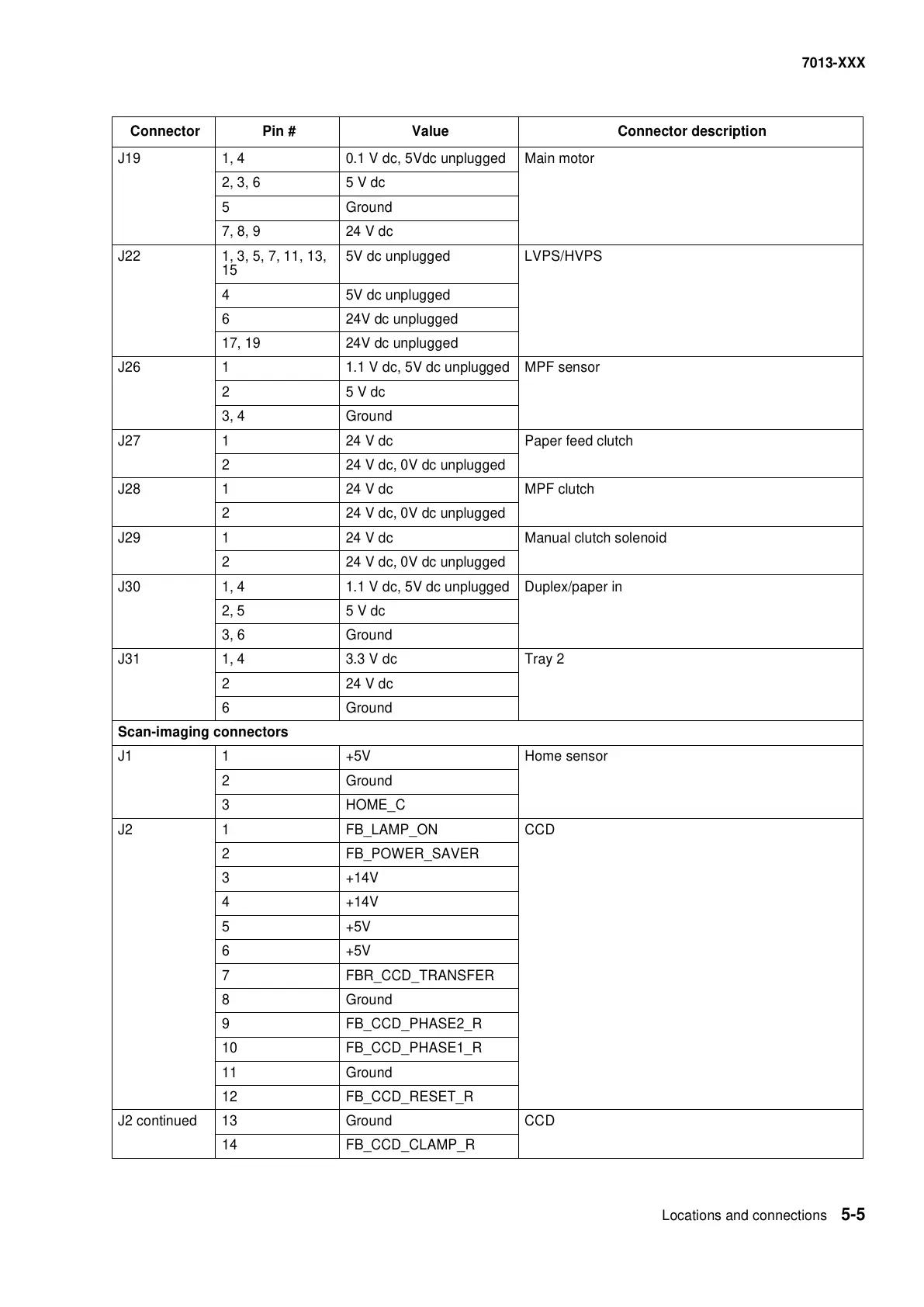

Locations and connections 5-5
7013-XXX
J19 1, 4 0.1 V dc, 5Vdc unplugged Main motor
2, 3, 6 5 V dc
5 Ground
7, 8, 9 24 V dc
J22 1, 3, 5, 7, 11, 13,
15
5V dc unplugged LVPS/HVPS
4 5V dc unplugged
6 24V dc unplugged
17, 19 24V dc unplugged
J26 1 1.1 V dc, 5V dc unplugged MPF sensor
25 V dc
3, 4 Ground
J27 1 24 V dc Paper feed clutch
2 24 V dc, 0V dc unplugged
J28 1 24 V dc MPF clutch
2 24 V dc, 0V dc unplugged
J29 1 24 V dc Manual clutch solenoid
2 24 V dc, 0V dc unplugged
J30 1, 4 1.1 V dc, 5V dc unplugged Duplex/paper in
2, 5 5 V dc
3, 6 Ground
J31 1, 4 3.3 V dc Tray 2
2 24 V dc
6 Ground
Scan-imaging connectors
J1 1 +5V Home sensor
2 Ground
3HOME_C
J2 1 FB_LAMP_ON CCD
2 FB_POWER_SAVER
3+14V
4+14V
5+5V
6+5V
7 FBR_CCD_TRANSFER
8 Ground
9 FB_CCD_PHASE2_R
10 FB_CCD_PHASE1_R
11 Ground
12 FB_CCD_RESET_R
J2 continued 13 Ground CCD
14 FB_CCD_CLAMP_R
Connector Pin # Value Connector description
