Lexmark X364dn - Make Sure the Paper Path is Clear; There May Be Excess Toner in the Paper Path; Streaked Vertical Lines

Repair information 4-69
7013-XXX

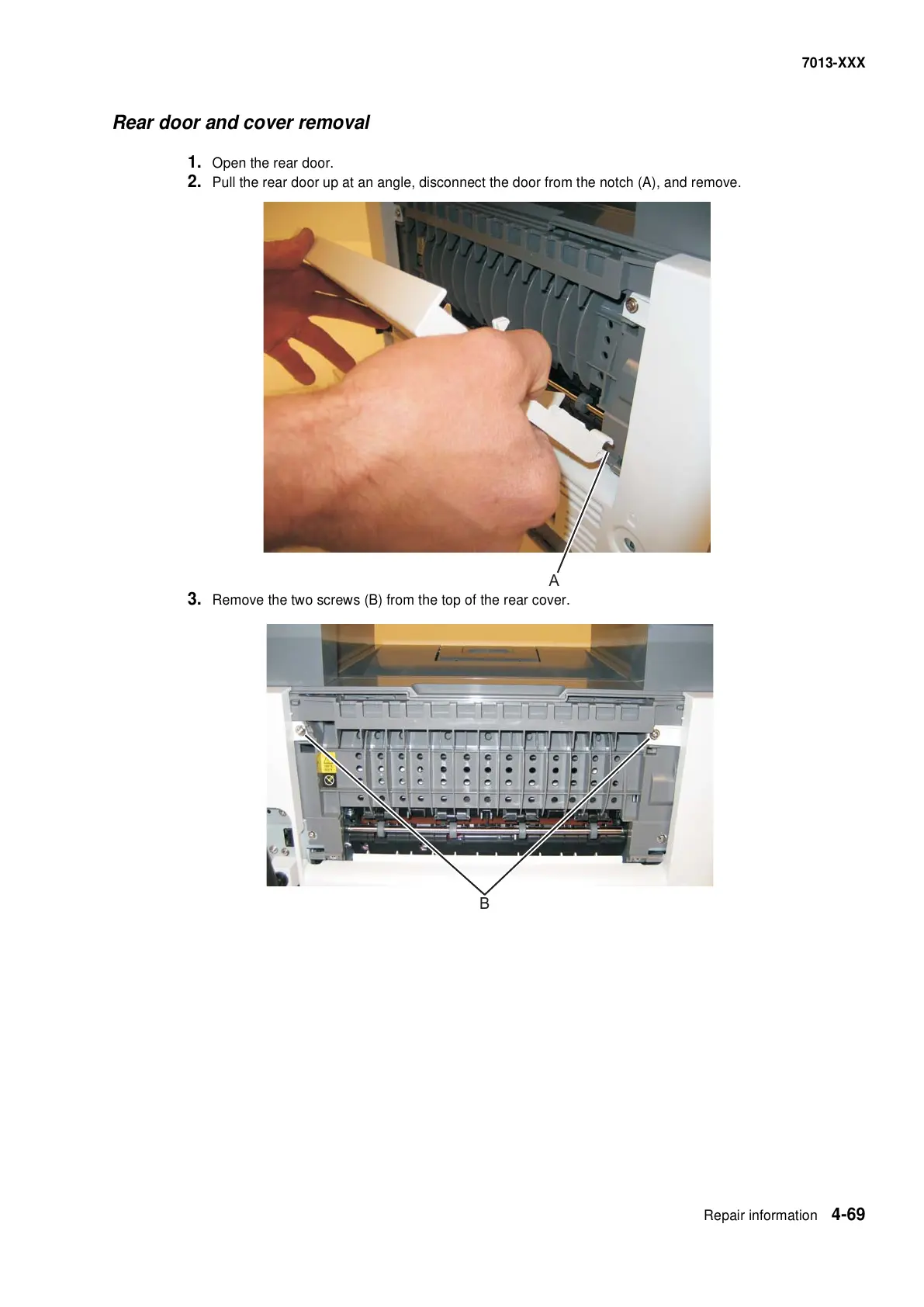

Rear door and cover removal
1. Open the rear door.
2. Pull the rear door up at an angle, disconnect the door from the notch (A), and remove.
3. Remove the two screws (B) from the top of the rear cover.
A
B
