Repair information 4-5
7013-XXX

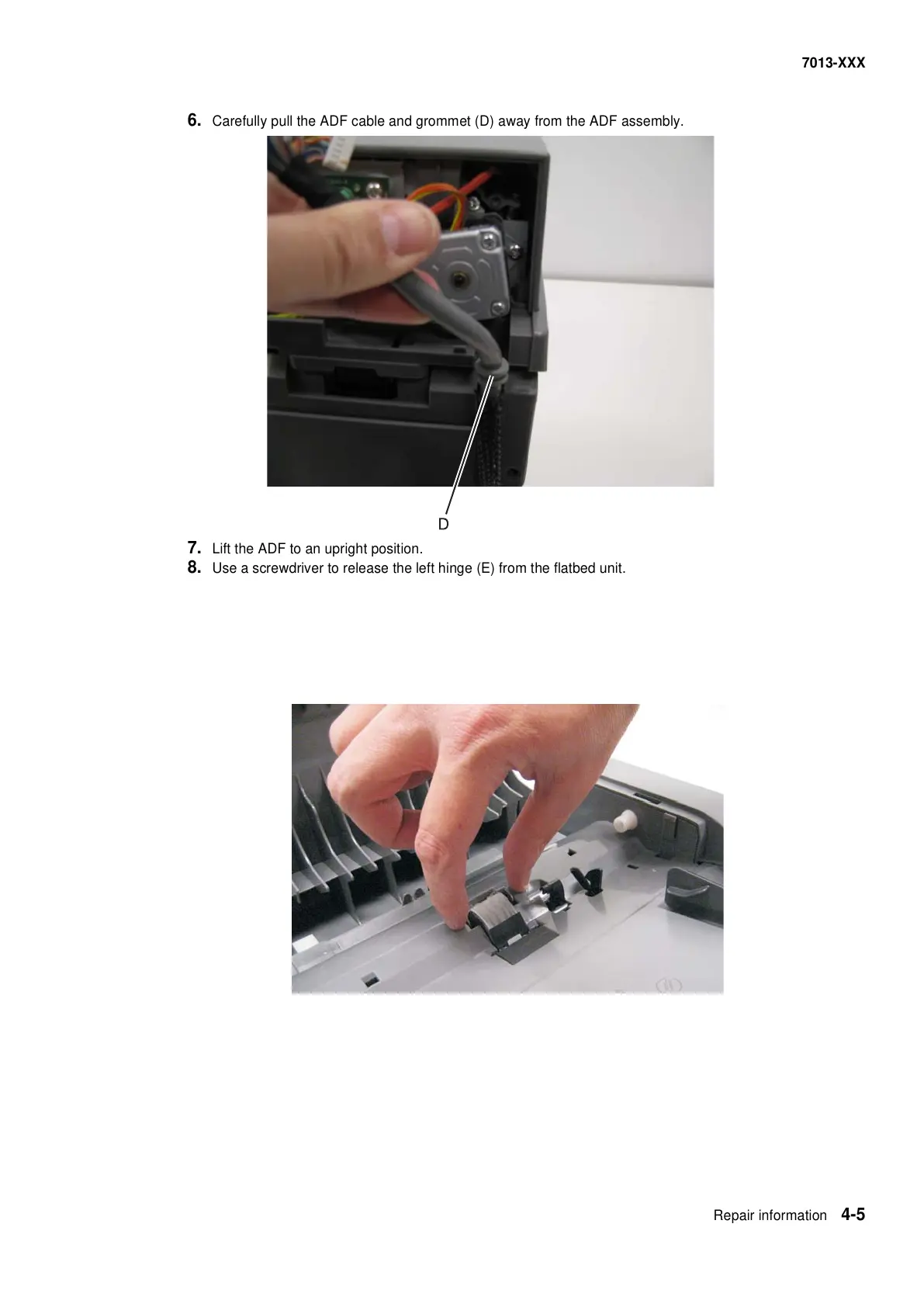

6. Carefully pull the ADF cable and grommet (D) away from the ADF assembly.
7. Lift the ADF to an upright position.
8. Use a screwdriver to release the left hinge (E) from the flatbed unit.
