Sensor2 test

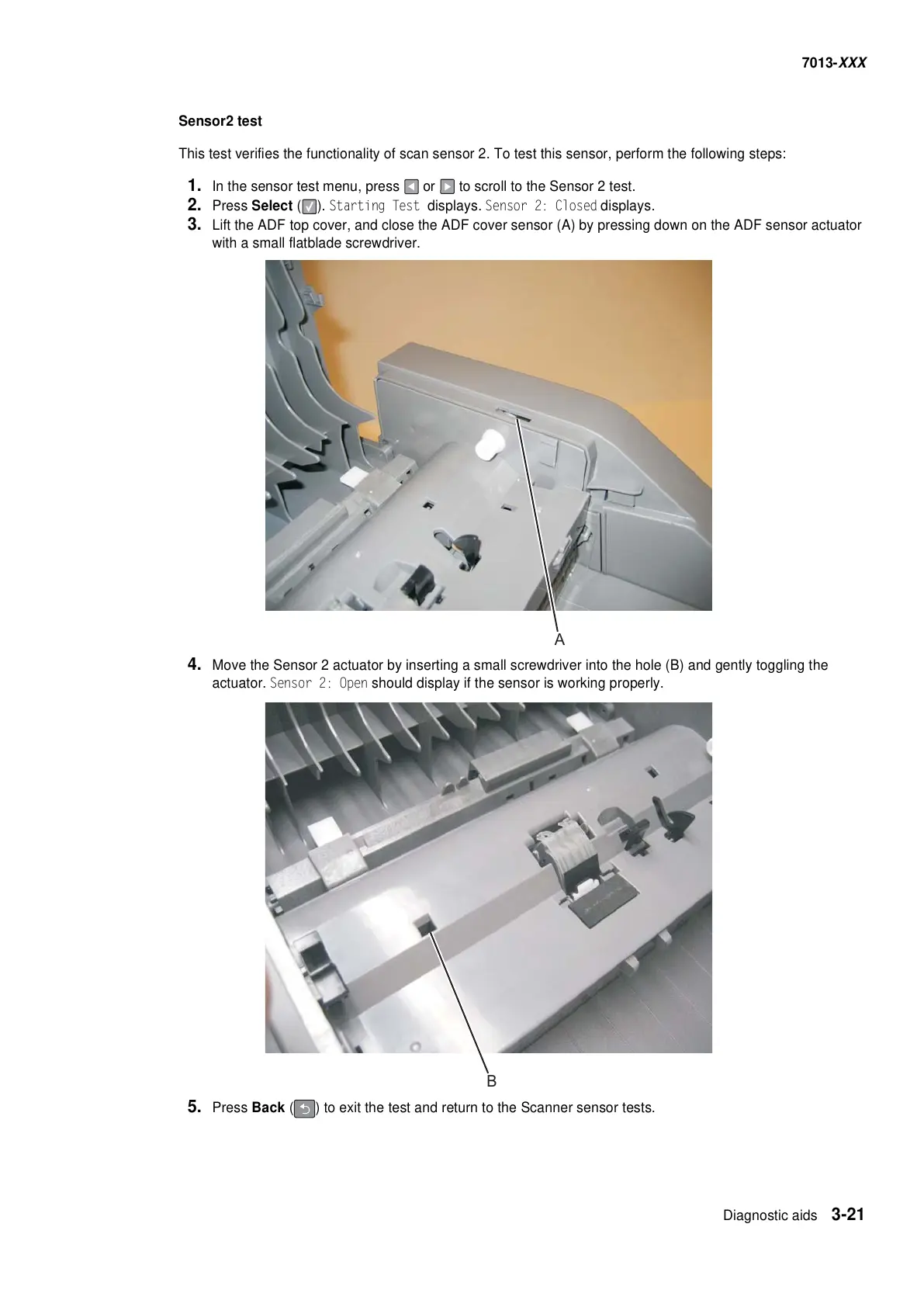

This test verifies the functionality of scan sensor 2. To test this sensor, perform the following steps:
1. In the sensor test menu, press or to scroll to the Sensor 2 test.
2. Press Select ( ). Starting Test displays. Sensor 2: Closed displays.
3. Lift the ADF top cover, and close the ADF cover sensor (A) by pressing down on the ADF sensor actuator
with a small flatblade screwdriver.
4. Move the Sensor 2 actuator by inserting a small screwdriver into the hole (B) and gently toggling the
actuator. Sensor 2: Open should display if the sensor is working properly.
5. Press Back ( ) to exit the test and return to the Scanner sensor tests.
