Repair information 4-45
7013-XXX

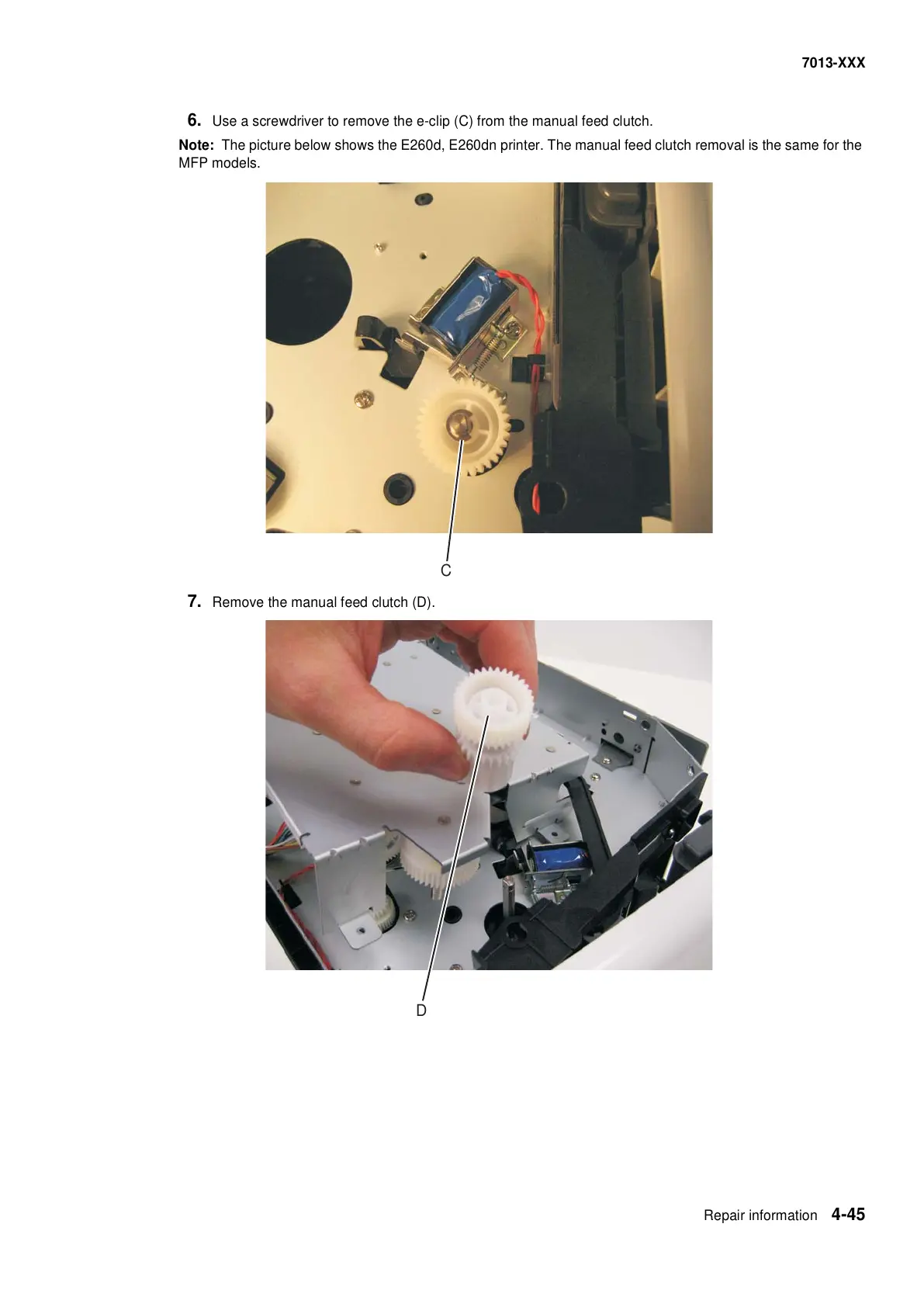

6. Use a screwdriver to remove the e-clip (C) from the manual feed clutch.
Note: The picture below shows the E260d, E260dn printer. The manual feed clutch removal is the same for the
MFP models.
7. Remove the manual feed clutch (D).
C
D
