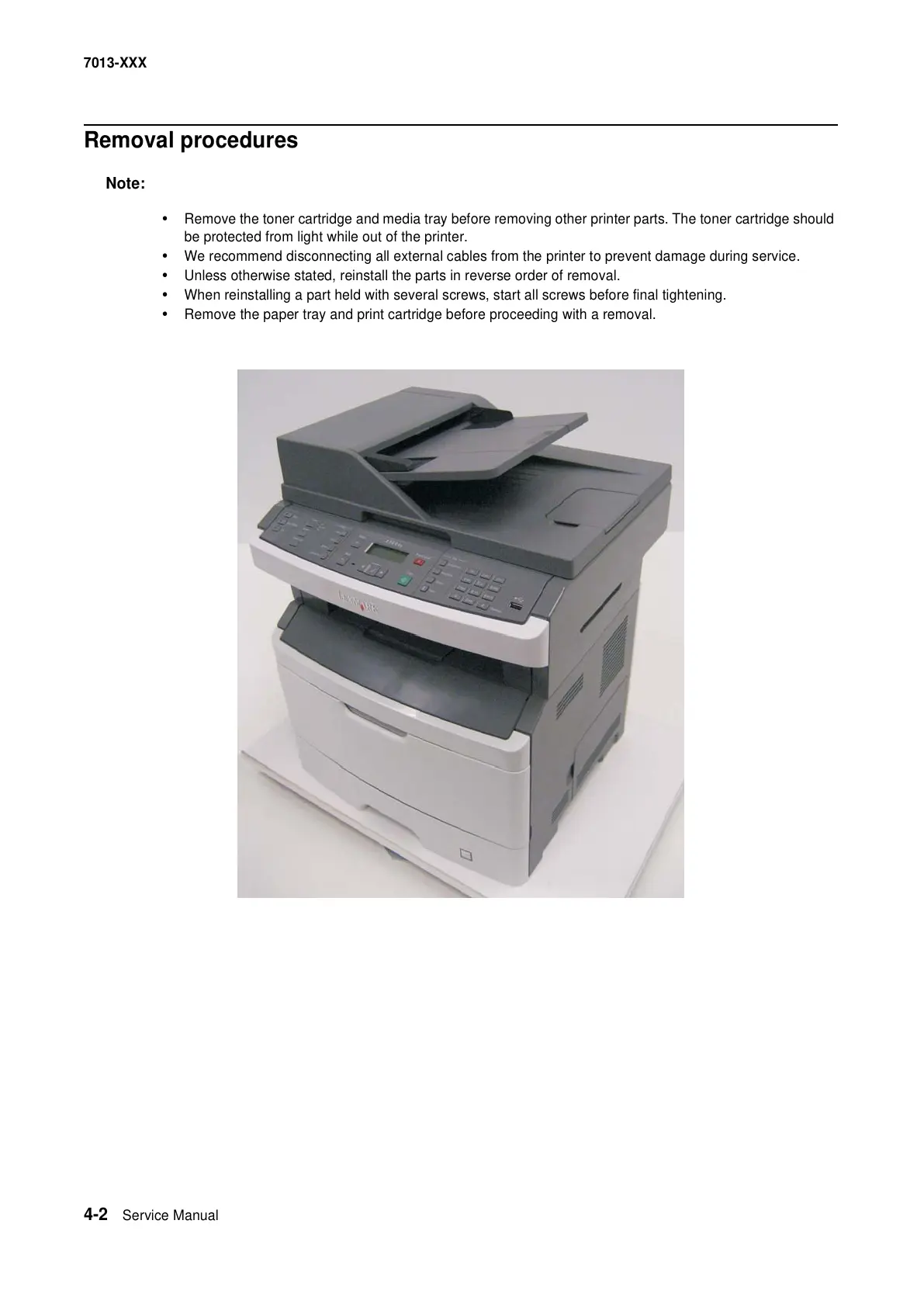

4-2 Service Manual
7013-XXX
Removal procedures
Note:
• Remove the toner cartridge and media tray before removing other printer parts. The toner cartridge should
be protected from light while out of the printer.
• We recommend disconnecting all external cables from the printer to prevent damage during service.
• Unless otherwise stated, reinstall the parts in reverse order of removal.
• When reinstalling a part held with several screws, start all screws before final tightening.
• Remove the paper tray and print cartridge before proceeding with a removal.
