4-22 Service Manual
7013-XXX

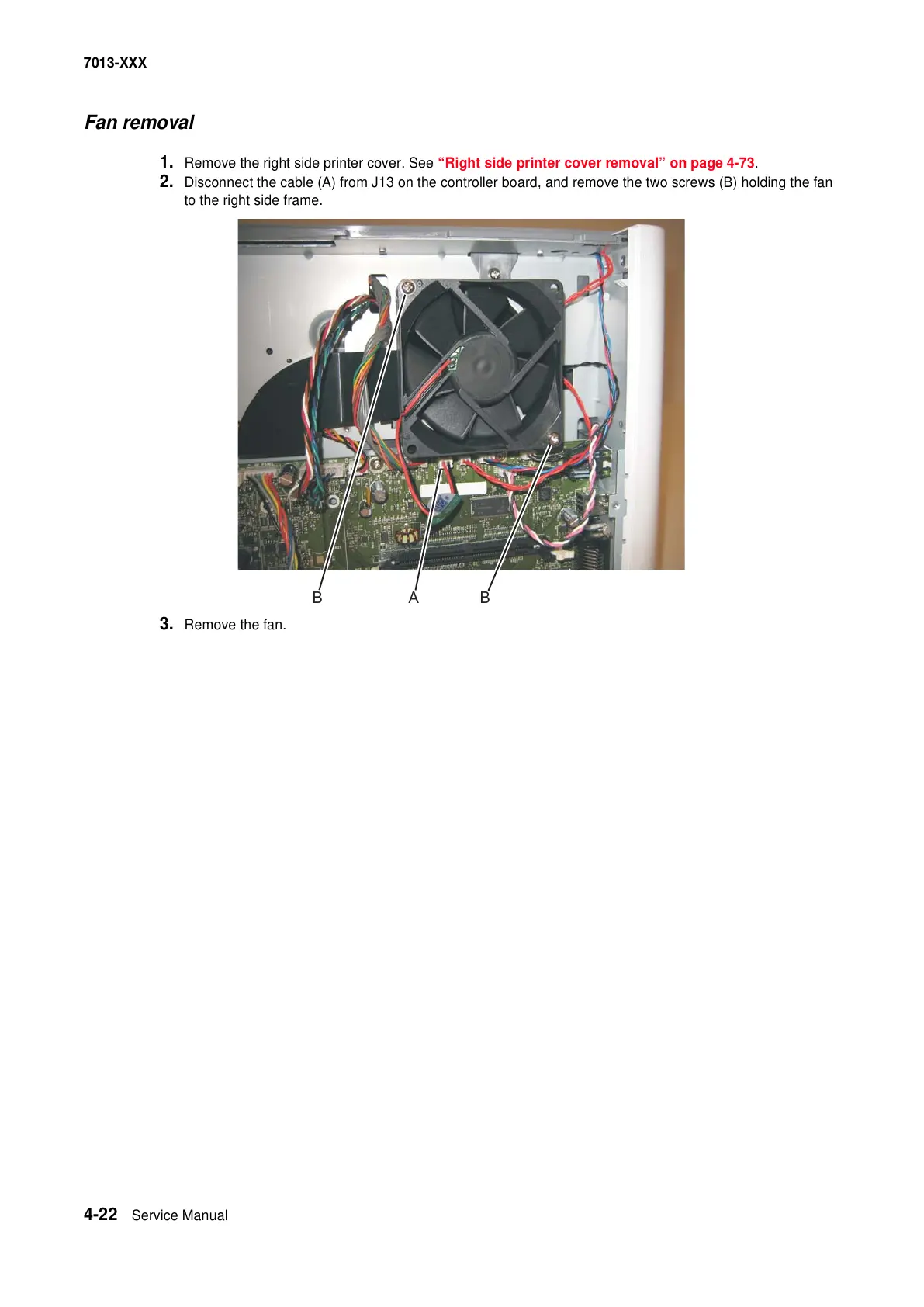

Fan removal
1. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
2. Disconnect the cable (A) from J13 on the controller board, and remove the two screws (B) holding the fan
to the right side frame.
3. Remove the fan.
A BB
