Lexmark X364dn - 234 Paper Jam; 235 Paper Jam

4-30 Service Manual
7013-XXX

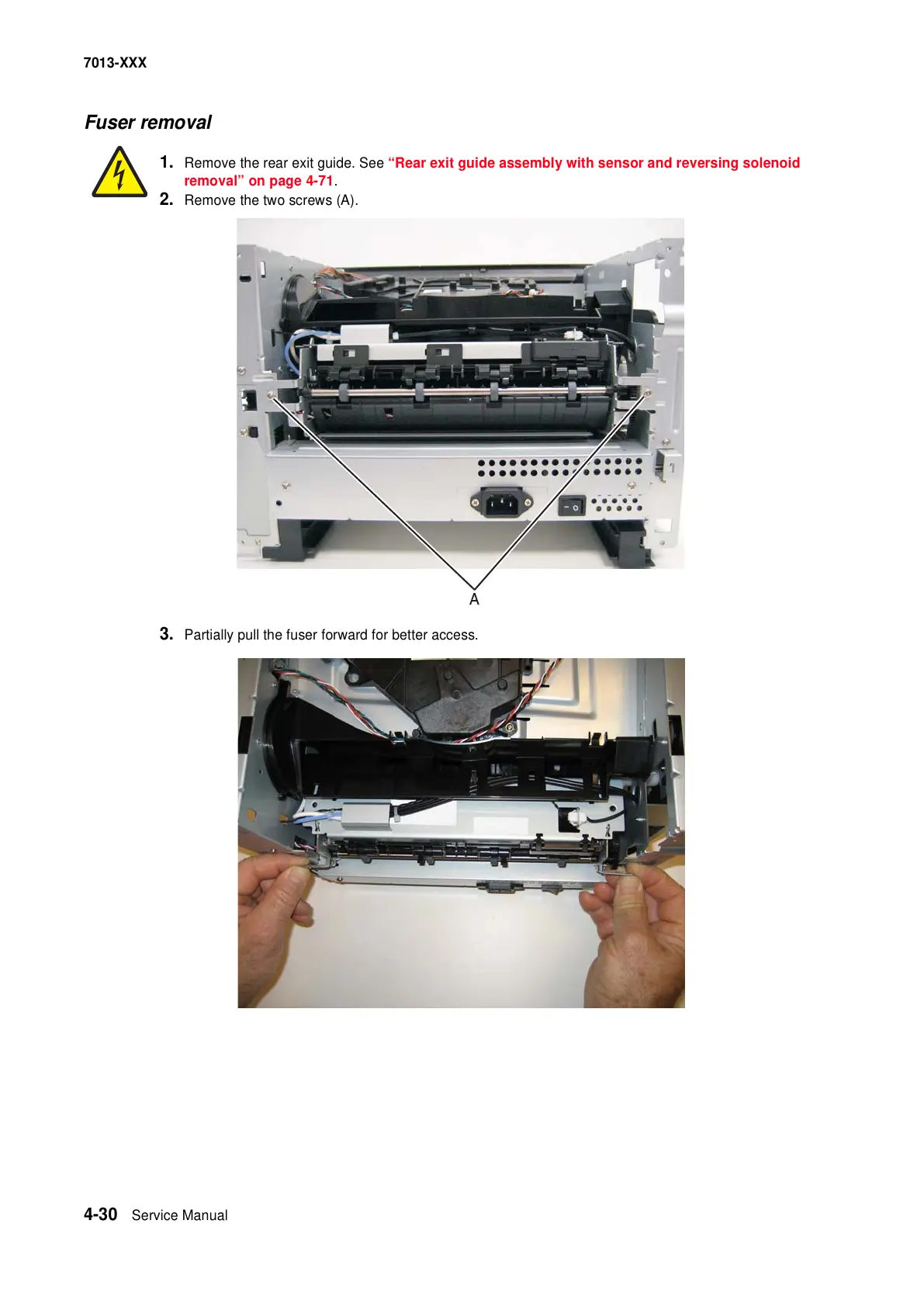

Fuser removal
1. Remove the rear exit guide. See “Rear exit guide assembly with sensor and reversing solenoid
removal” on page 4-71.
2. Remove the two screws (A).
3. Partially pull the fuser forward for better access.
