Lexmark X364dn - Page 175

Repair information 4-37
7013-XXX

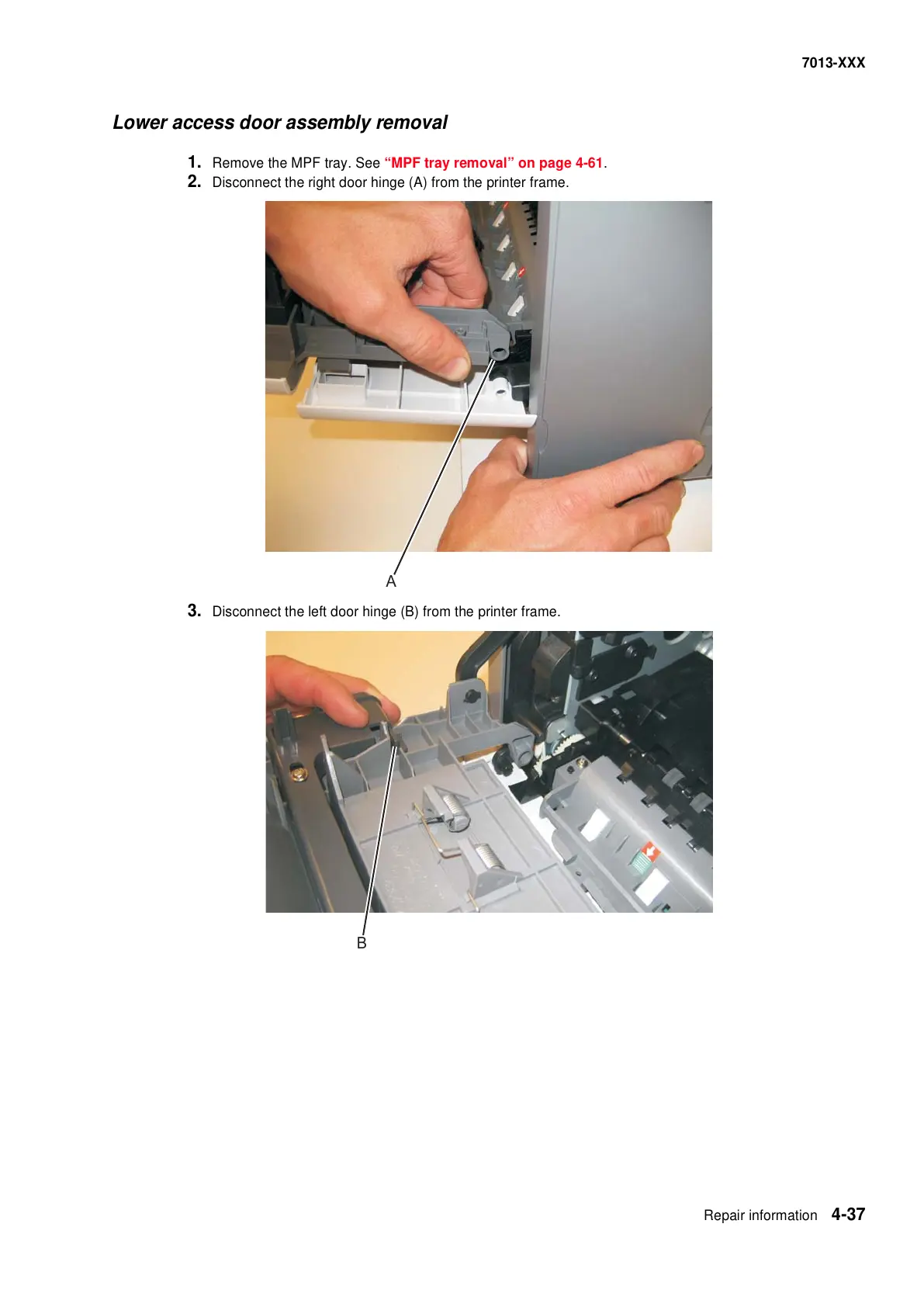

Lower access door assembly removal
1. Remove the MPF tray. See “MPF tray removal” on page 4-61.
2. Disconnect the right door hinge (A) from the printer frame.
3. Disconnect the left door hinge (B) from the printer frame.
A
B
