Lexmark X364dn - Reduce the Complexity of the Print Job

4-50 Service Manual
7013-XXX

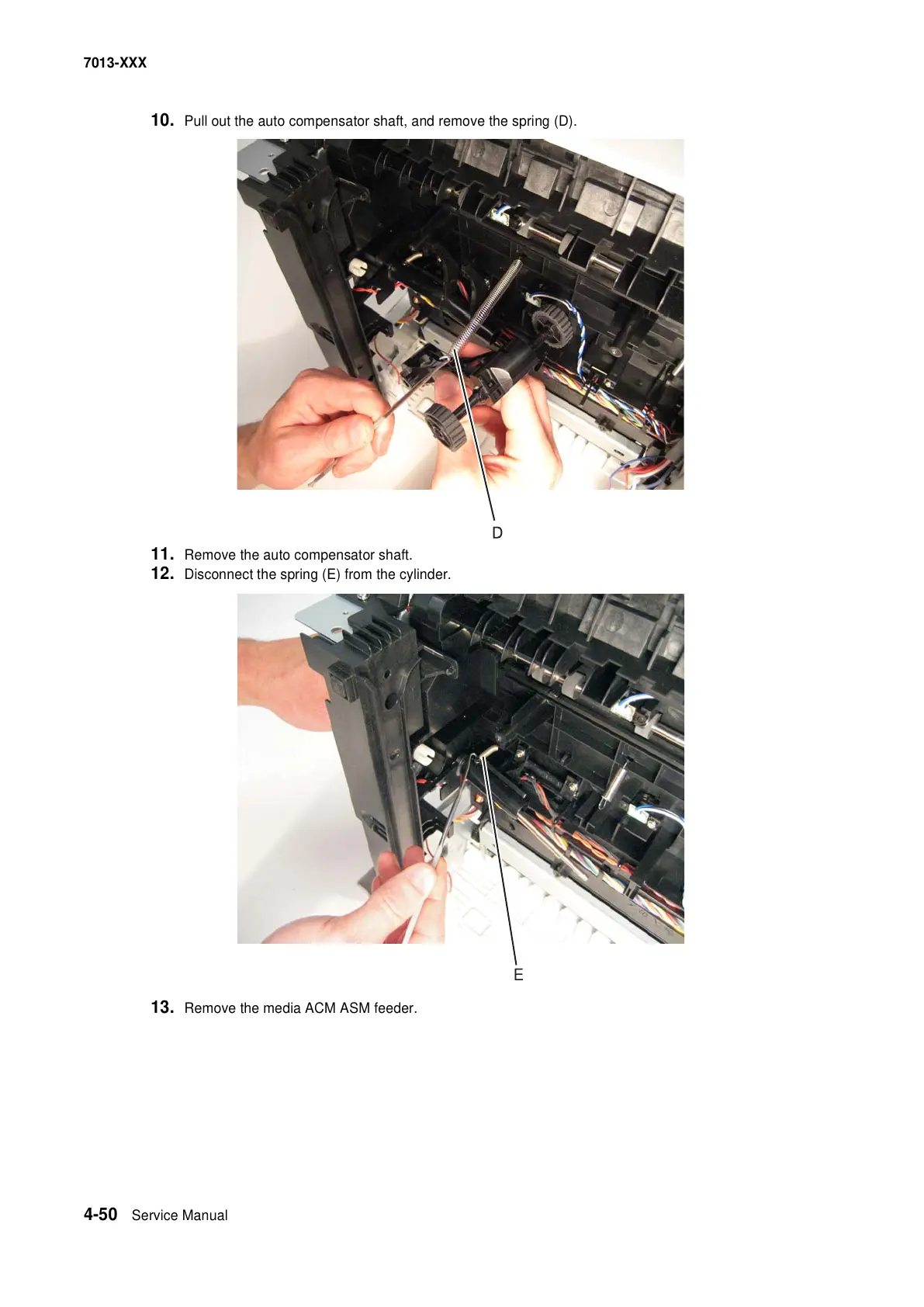

10. Pull out the auto compensator shaft, and remove the spring (D).
11. Remove the auto compensator shaft.
12. Disconnect the spring (E) from the cylinder.
13. Remove the media ACM ASM feeder.
E
