Lexmark X364dn - Check the Document Placement; Unwanted Toner is in the Background; Patterns (Moiré) Appear in the Output; Text is Light or Disappearing

Repair information 4-53
7013-XXX

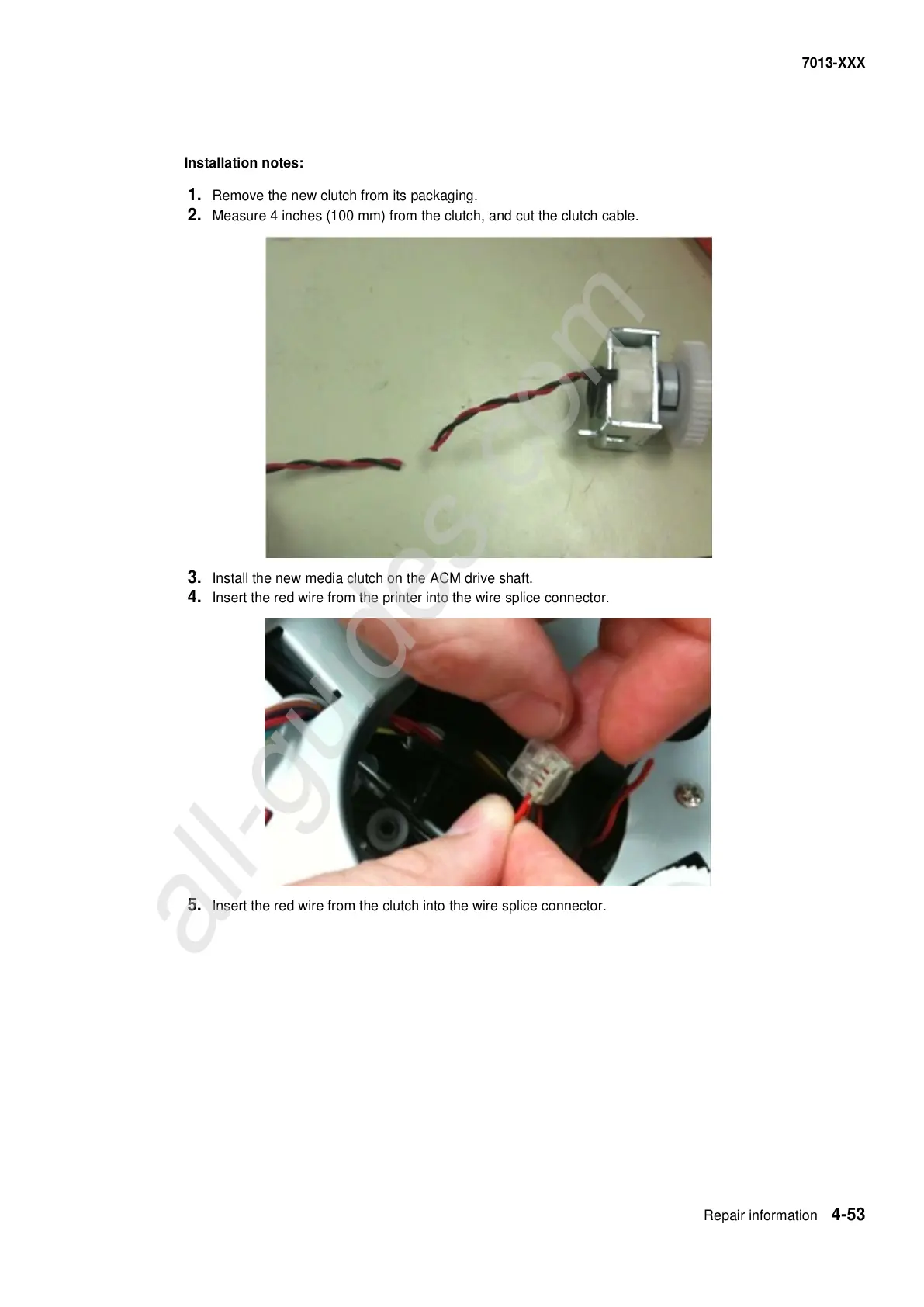

Installation notes:
1. Remove the new clutch from its packaging.
2. Measure 4 inches (100 mm) from the clutch, and cut the clutch cable.
3. Install the new media clutch on the ACM drive shaft.
4. Insert the red wire from the printer into the wire splice connector.
5. Insert the red wire from the clutch into the wire splice connector.
