7-10 Service Manual
7013-XXX

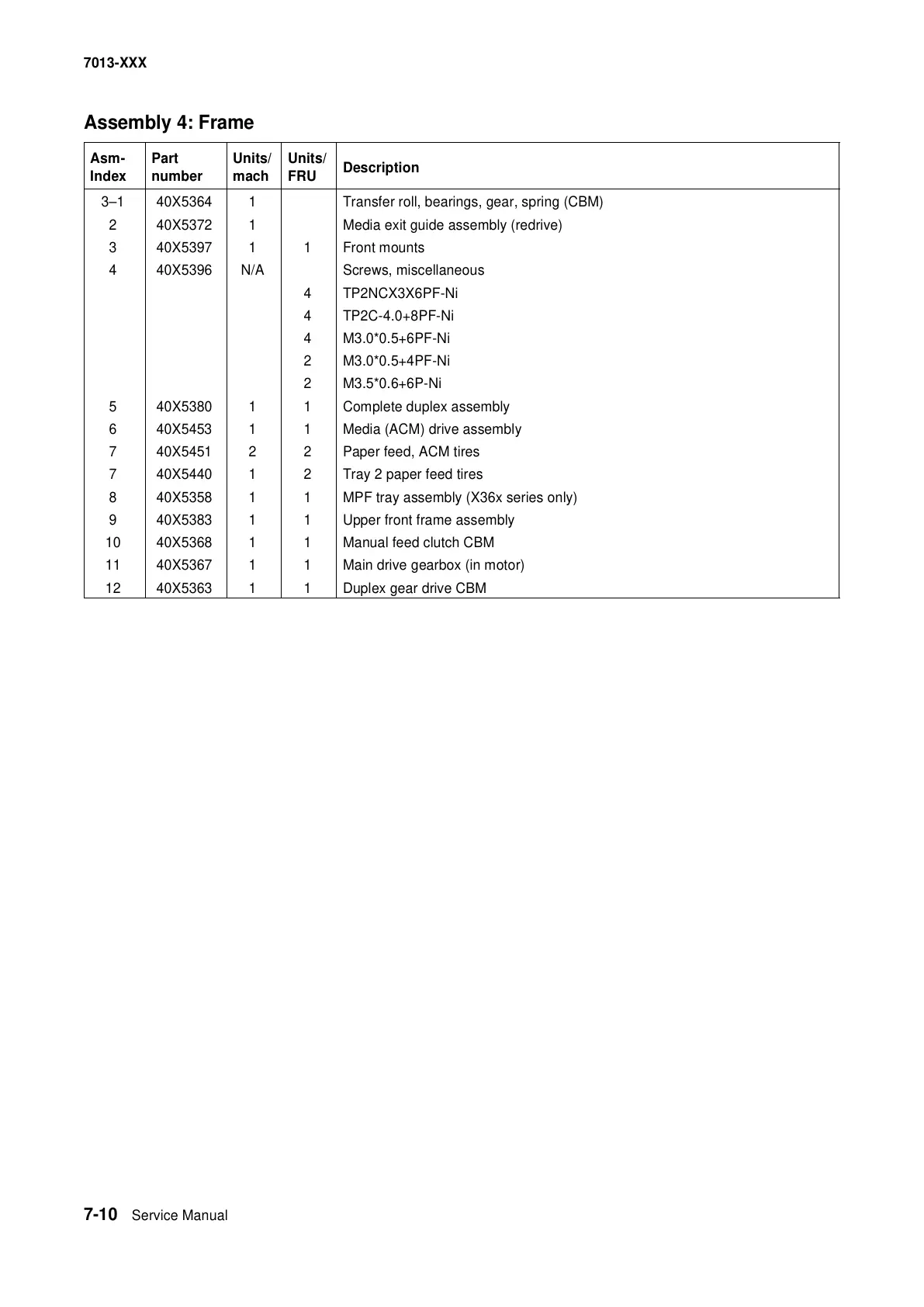

Assembly 4: Frame
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
3–1 40X5364 1 Transfer roll, bearings, gear, spring (CBM)
2 40X5372 1 Media exit guide assembly (redrive)
3 40X5397 1 1 Front mounts
4 40X5396 N/A
4
4
4
2
2
Screws, miscellaneous
TP2NCX3X6PF-Ni
TP2C-4.0+8PF-Ni
M3.0*0.5+6PF-Ni
M3.0*0.5+4PF-Ni
M3.5*0.6+6P-Ni
5 40X5380 1 1 Complete duplex assembly
6 40X5453 1 1 Media (ACM) drive assembly
7 40X5451 2 2 Paper feed, ACM tires
7 40X5440 1 2 Tray 2 paper feed tires
8 40X5358 1 1 MPF tray assembly (X36x series only)
9 40X5383 1 1 Upper front frame assembly
10 40X5368 1 1 Manual feed clutch CBM
11 40X5367 1 1 Main drive gearbox (in motor)
12 40X5363 1 1 Duplex gear drive CBM
