Lexmark X5070 - Understanding the Parts of the Printer

Name Description
8
User's Guide, Getting Started, or Setup Solutions Printed booklet that serves as a guide.
Note: The User's Guide can be found on the installation
software CD that shipped with the printer.
Note: A USB cable may or may not be included.

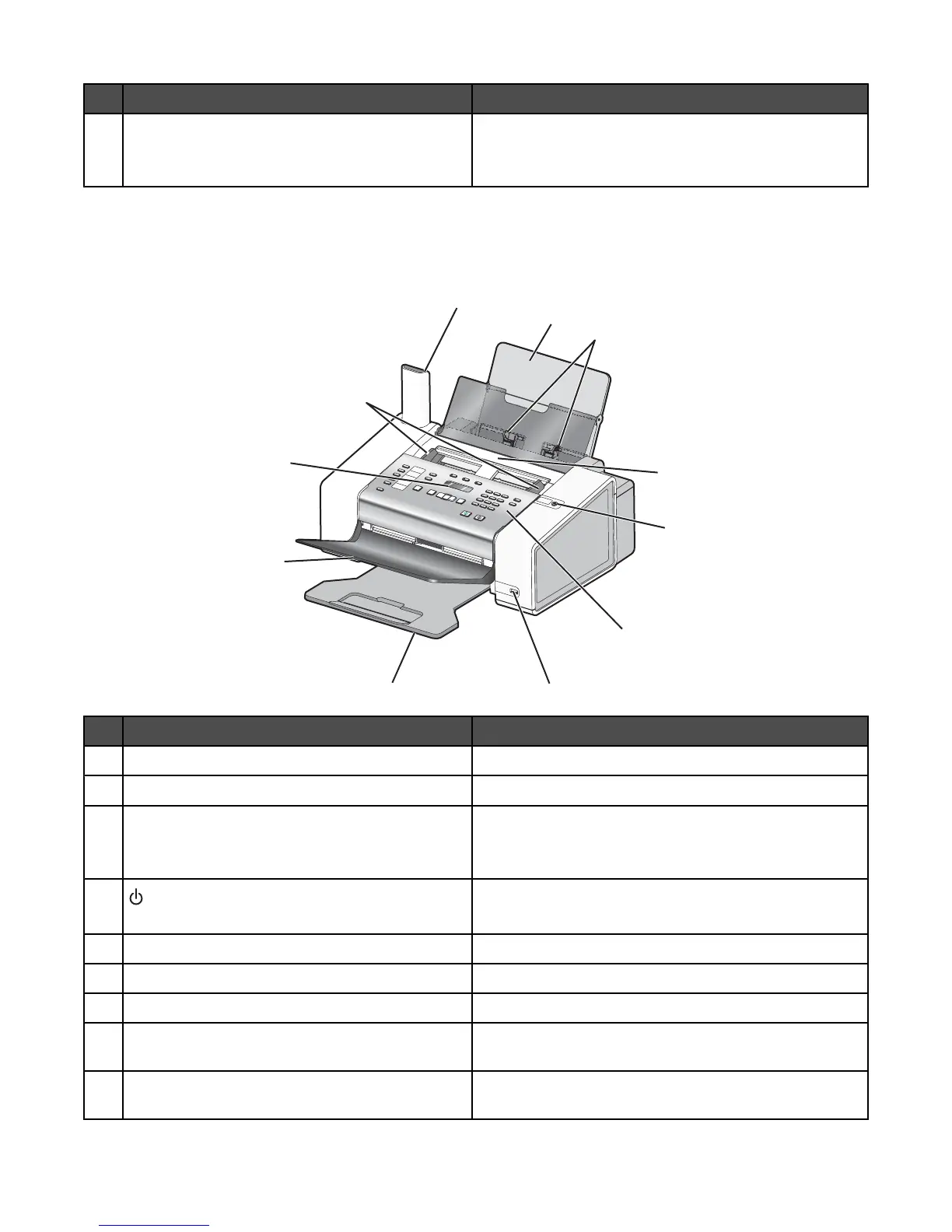

Understanding the parts of the printer
1
2
10
4
5
6
7
8
9
11
3
Use the To
1
Paper support Load paper.
2
Paper guides Keep paper straight when loading.
3
Automatic Document Feeder (ADF) Fax, copy, or scan one or more pages.
Note: Do not load postcards, photos, small items, or thin
media (such as magazine clippings) into the ADF.
4
• Turn the printer on and off.
• Stop the print, copy, scan, or fax process.
5
Control panel Operate the printer.
6
PictBridge port Connect a PictBridge-enabled digital camera.
7
Paper exit tray Hold paper as it exits.
8
Automatic Document Feeder (ADF) exit tray Pick up your original document after it has gone through
the ADF.
9
Display View menus, settings options, printer status, and
messages.
