LEYBOLD TURBOVAC i(X) - 950 i Operation Diagrams; Operation Diagrams for Nitrogen (TURBOVAC 950 i); Operation Diagrams for Argon (TURBOVAC 950 i)

Description
17300855170_002_C8 - 08/2021 - © Leybold
Gasdurchsatz in mbarl/s
Druck in mbar
Saugleistung TURBOVAC 950i
Kühlwasser 15 °C, 100 l/h
Kühlwasser 35 °C, 50 l/h
Lüfterkühlung 24 °C
Lüfterkühlung 40 °C
Konvektion 24 °C
ECODRY 65 plus
TRIVAC D 65 B
SCROLLVAC 7 plus
DIVAC 3.8 HV3
10
-6
10
-4
10
2
10
-2
1
10
-10
10
-8
10
-6
10
-4
10
10
-2
1
10
-8
Operationsdiagramm TURBOVAC 950i für Stickstoff
Gasdurchsatz in mbarl/s
Druck in mbar
Operationsdiagramm TURBOVAC 950i für Argon
Saugleistung TURBOVAC 950i
Kühlwasser 15 °C, 100 l/h
Kühlwasser 35 °C, 50 l/h
Lüfterkühlung 24 °C
Lüfterkühlung 40 °C
Konvektion 24 °C
ECODRY 65 plus
TRIVAC D 65 B
SCROLLVAC 7 plus
DIVAC 3.8 HV3
10
-6
10
-4
10
2
10
-2
1
10
-10
10
-8
10
-6
10
-4
10
10
-2
1
10
-8

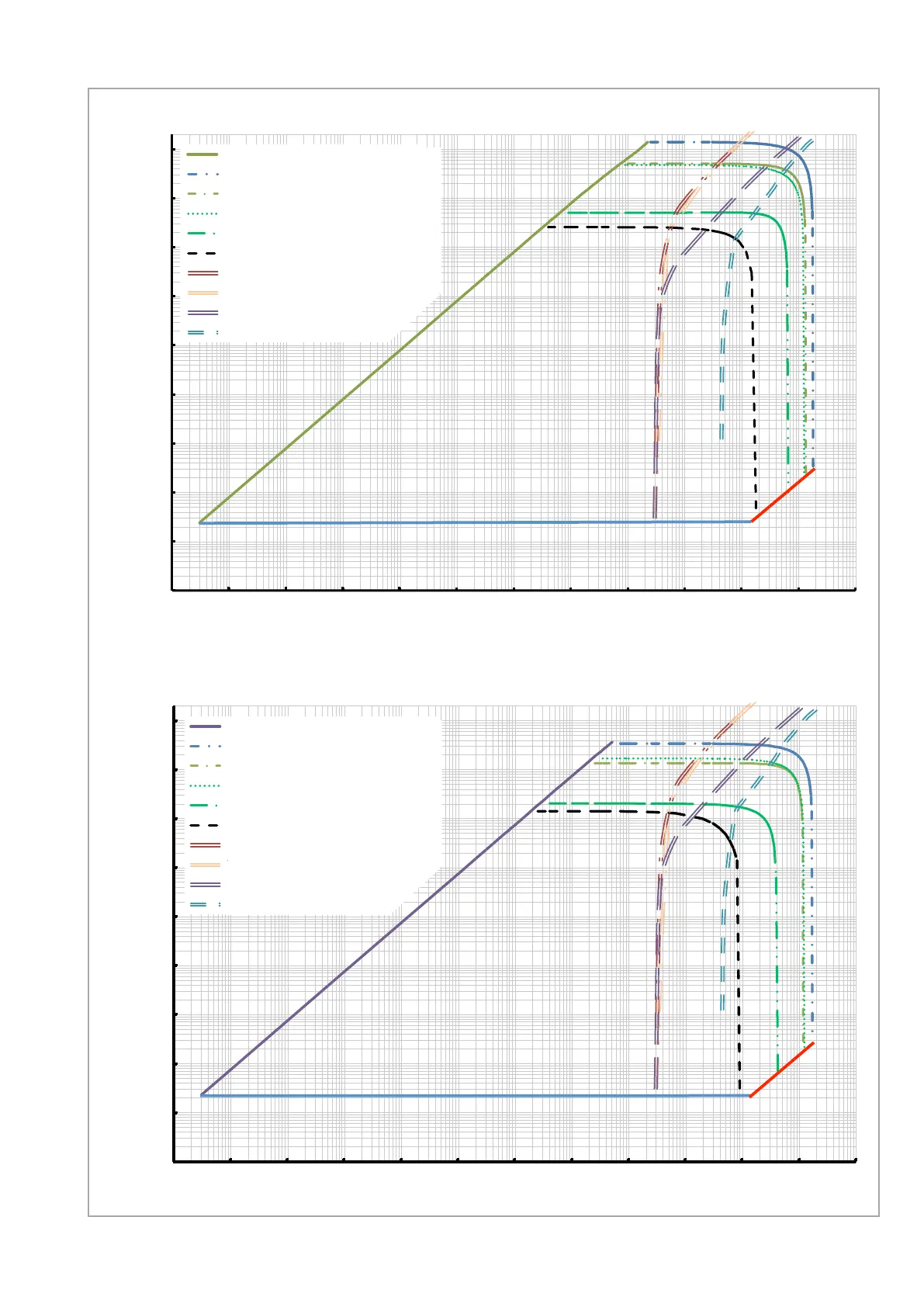

Fig. 1.9 Operation diagrams for TURBOVAC 950 i
Operation diagram for nitrogen for the TURBOVAC 950i
Throughput TURBOVAC 950i
Cooling water 15 °C, 100 l/h
Cooling water 35 °C, 50 l/h
Air cooling 24 °C
Air cooling 40 °C
Convection 24 °C
ECODRY 65 plus
TRIVAC D 65 B
SCROLLVAC 7 plus
DIVAC 3.8 HV3
Gas throughput in mbar·l/s
Pressure in mbar
Operation diagram for argon for the TURBOVAC 950i
Throughput TURBOVAC 950i
Cooling water 15 °C, 100 l/h
Cooling water 35 °C, 50 l/h
Air cooling 24 °C
Air cooling 40 °C
Convection 24 °C
ECODRY 65 plus
TRIVAC D 65 B
SCROLLVAC 7 plus
DIVAC 3.8 HV3
Gas throughput in mbar·l/s
Pressure in mbar
