INSTALLATION OF INDOOR UNIT
ENGLISH
Mounting to Wall

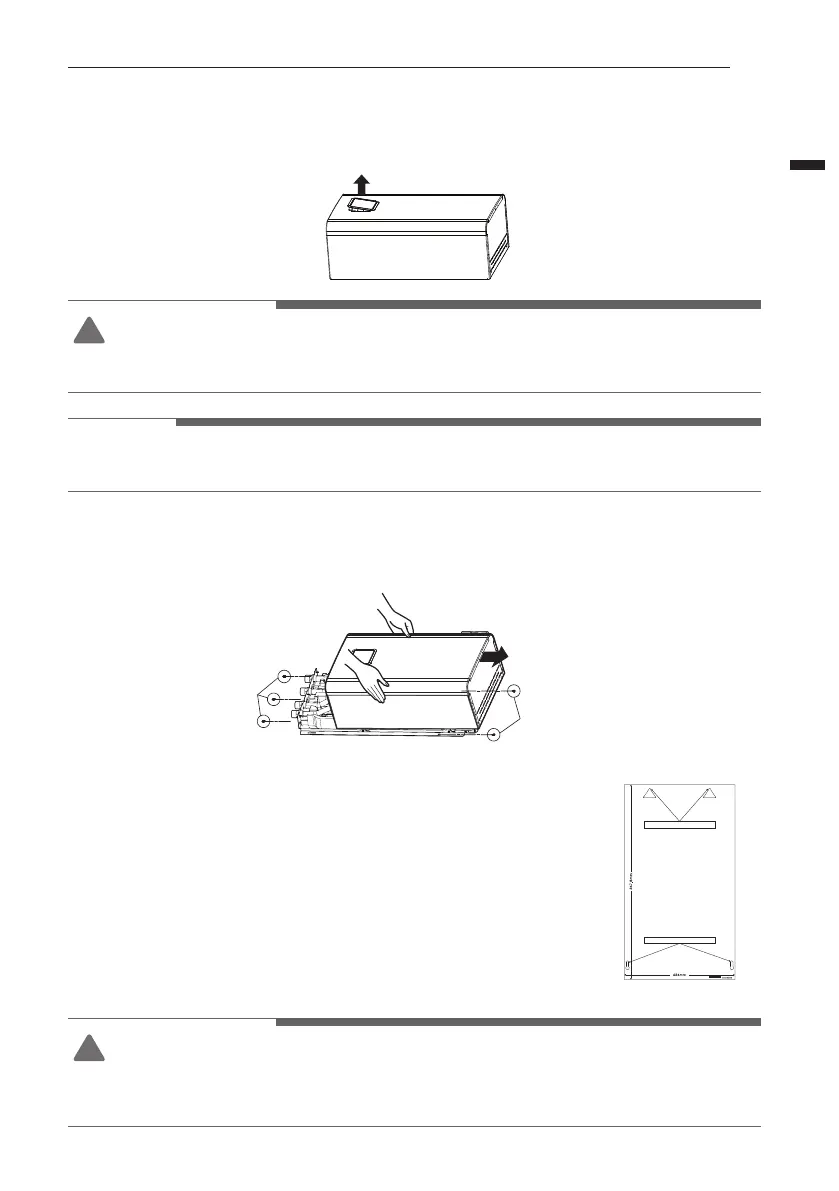

Step 1. Disconnect the remote control case from the front panel and disconnect the remote
control cable.
Step 2. After releasing five screws, detach front cover from the indoor unit. While detaching the
front cover, grab the left and right sides of the front cover. Then pull into upward
direction.
Step 3. Attach "Installation Sheet" to the wall and mark the location of bolts.
This sheet helps to find correct location of bolts.
Stud Hole Bolt (Using More than M8)
Stud Hole Bolt (Using More than M8)
NOTE
Use a flat-blade screwdriver or a coin to remove the remote control case.
CAUTION
!
The attached “Installation sheet” should be level.
If not, the supporting plate and the indoor unit will not be mounted correctly.
CAUTION
!
After installation is completed, return the remote control to its original state.
