ACCESSORIES INSTALLATION
ENGLISH
[Thermistor for Mixing circuit]
Follow below procedures step 1 ~ step 4.
Step 1. Install sensor connector to discharge pipe of mix pump.
(Welding must be performed to connect the sensor connector to the pipe)
Step 2. Check if the power of the unit is turned off.

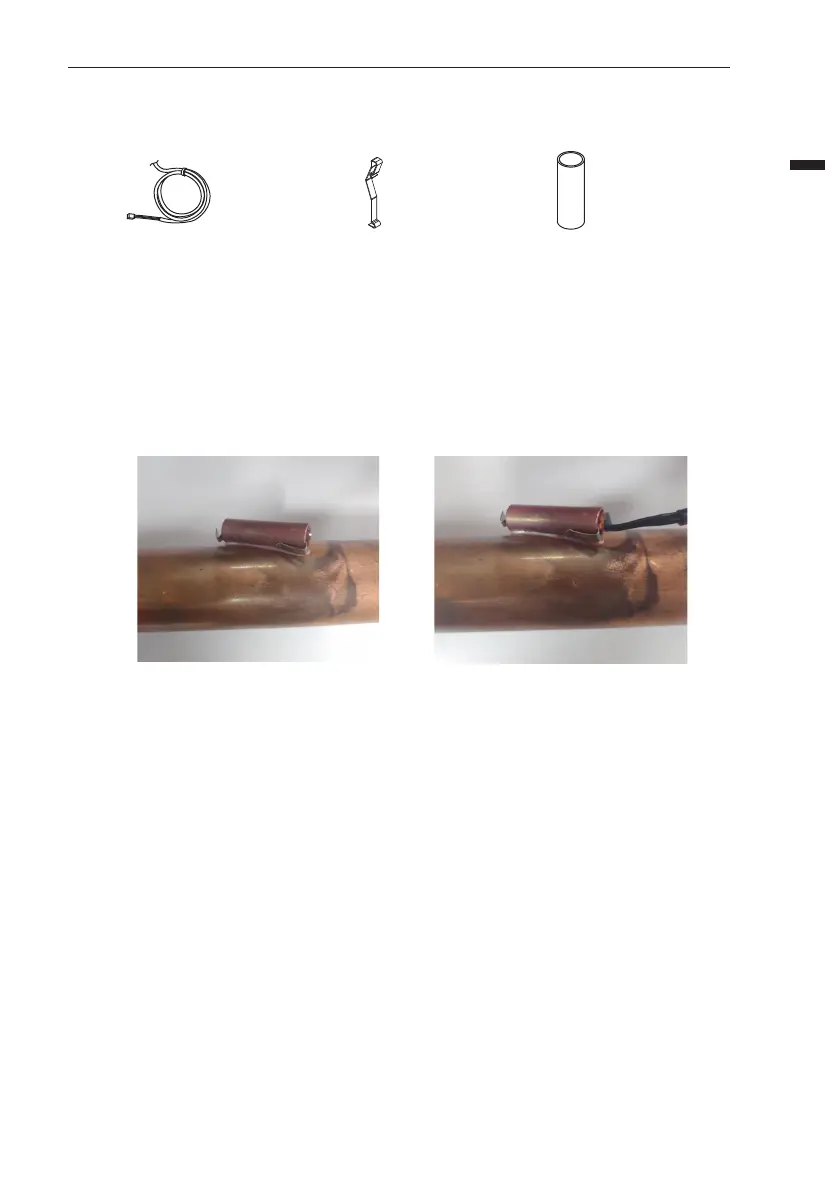

Step 3. Fasten the sensor connector to the sensor holder as shown in the figure below.
Step 4. Insert harness into PCB(CN_MIX_OUT) fully and fix the thermal sensor into tube
connector as shown below.
Sensor Sensor Holder Sensor Connector
