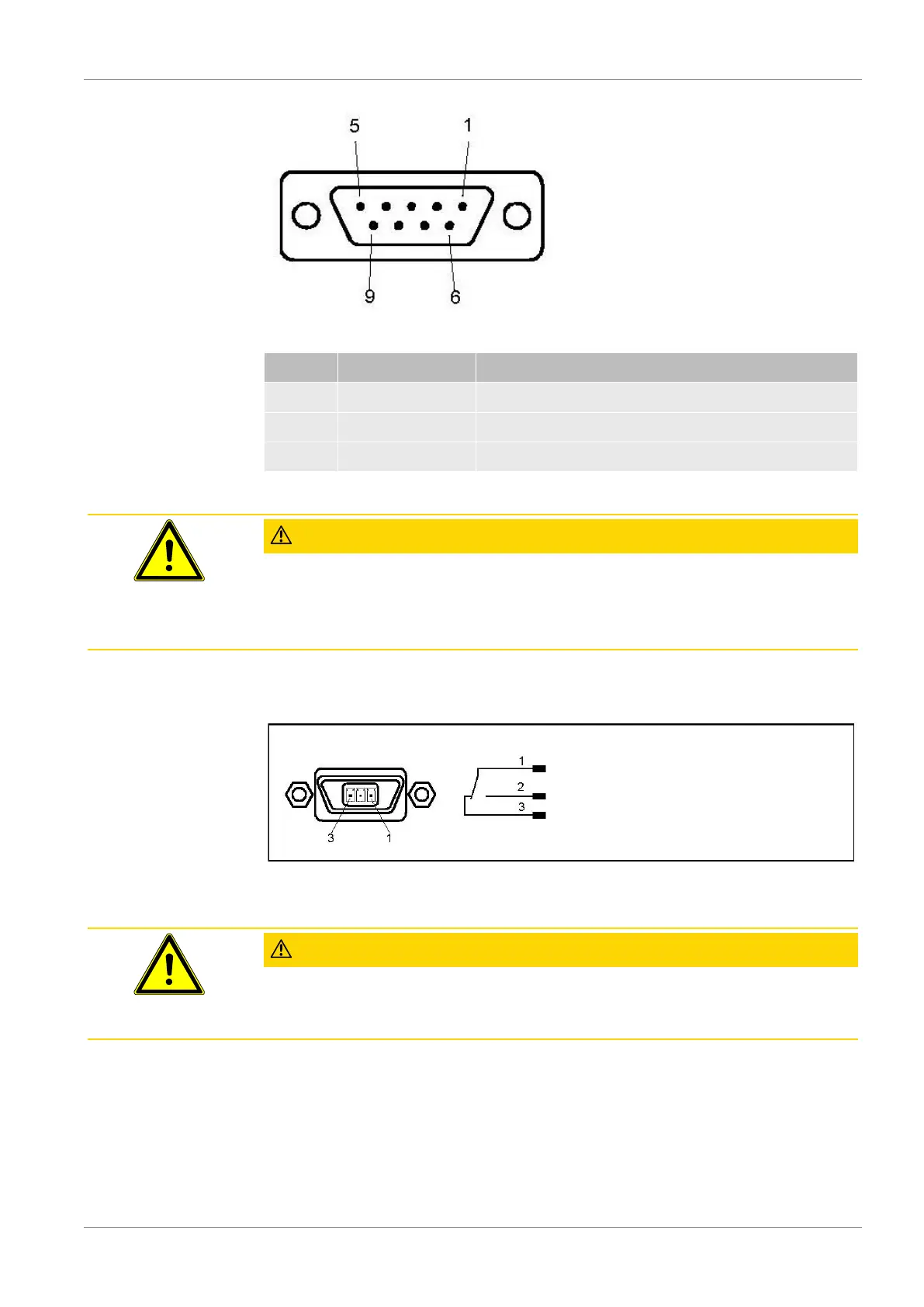

Fig.11: RS232 interface
Pin Signal
2 TxD Send data (galvanically isolated)
3 RxD Receive data (galvanically isolated)
5 GGND Reference potential (galvanically isolated)
Relay 1, relay 2
CAUTION
Caution: Supply voltage
Improperly fused products can be life-threatening. Only use fuses with the values
given in the instructions!
Relay contact 230 V~, 3 A
Power Subcon connector, 3-pin
Fig.12: Relay
LP connection
CAUTION
The connectors look very similar!
There is the risk of confusing the connectors with the "RS485" connector.
Connection for sniffer line 3 m, 5 m, 10 m, RJ45, 8-pin
