4.3.4 Connections for accessories and control signals

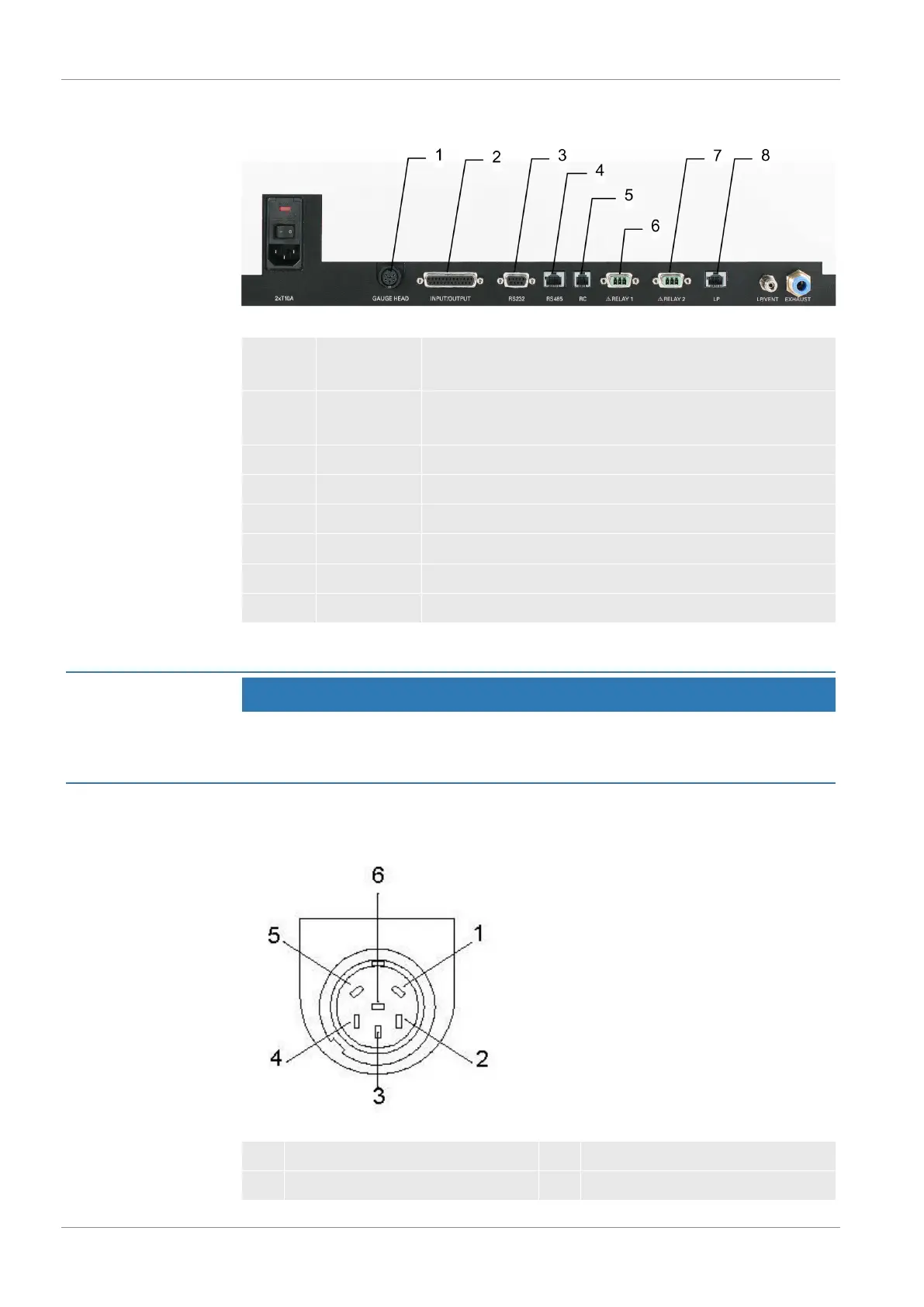

Fig.6: Linxon interfaces
1
GAUGE
HEAD
Connection for compact measuring tube
2
INPUT/
OUTPUT
Control and output signals
3
RS232
Connection for PC/printer
4
RS485
Connection for PC
5
RC
Remote control or radio transmitter
6
Relay 1
Relay contact
7
Relay 2
Relay contact
8
Sniffer line
Connection for sniffer line 3 m, 5 m, 10 m
NOTICE
The electronics of the device can be destroyed.
► Only connect devices that are provided for the appropriate interfaces.
The connections for the external devices show a safe disconnection from the power
supply and are within the range of the safety extra low voltage (SELV).
GAUGE HEAD
Fig.7: GAUGE HEAD
1 Identification 2 GND
3 Measurement signal 4 Measurement signal
