4 | Description LINXON
28 / 90 LX218-Operating-Manual-en1-04-(1908)

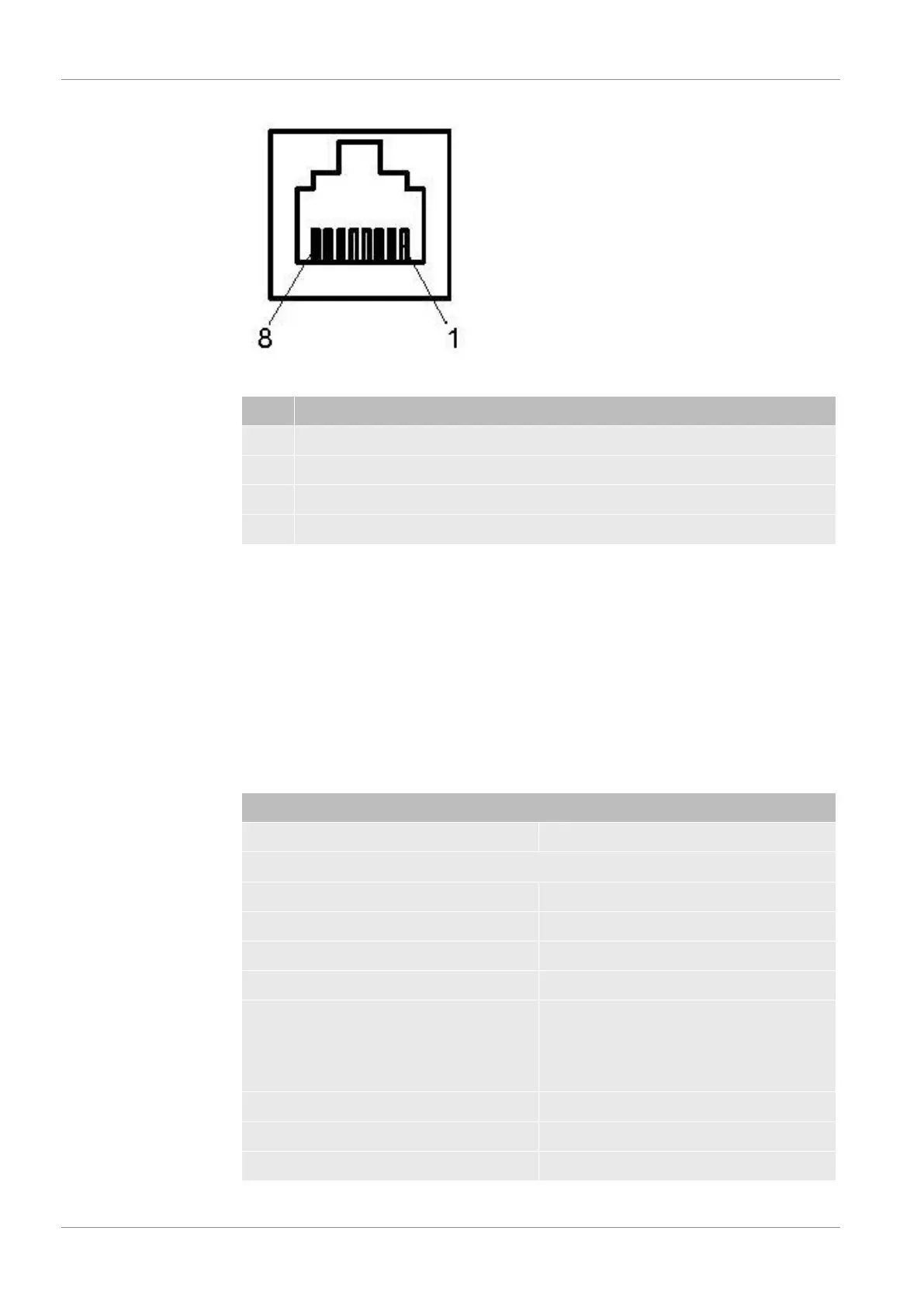

Fig.13:
LP connection
Pin Signal
3 ZERO
4 (red LED)
5 (green LED)
6 +24 V (0.8 A slow-blowing fuse)
Green LED: Leak detector is ready for making measurements.
Red LED: Threshold is exceeded.
4.4 Technical data
4.4.1 General data
LX218
Dimensions 555 mm x 305 mm x 425 mm (LxWxH)
Weight
With oil-sealed pump 42 kg
With dry compressing pump 41 kg
Without pump (module) 32 kg
Inlet flange DN 25 ISO- KF
Cooling air
Inlet
Outlet
Bottom side; with dust filter
Rear side
Exhaust gas connection For hose Ø 8/6 mm
External backing pump connection DN 25 ISO- KF
Degassing connection (N2) Sniffer line connection for hose Ø 6/4 mm
