1. Check whether the value on the display corresponds to the value on the
calibration leak rating plate. If this is not the case, change the calibration leak
value:
Run-up > Configuration > Calibration settings > Calibration leak and operation mode
CAL
1. Connect the calibration leak to the inlet flange.
2. Open the calibration leak by opening the valve.
3. Press OK.
The preparations for the calibration with an external calibration leak are complete.

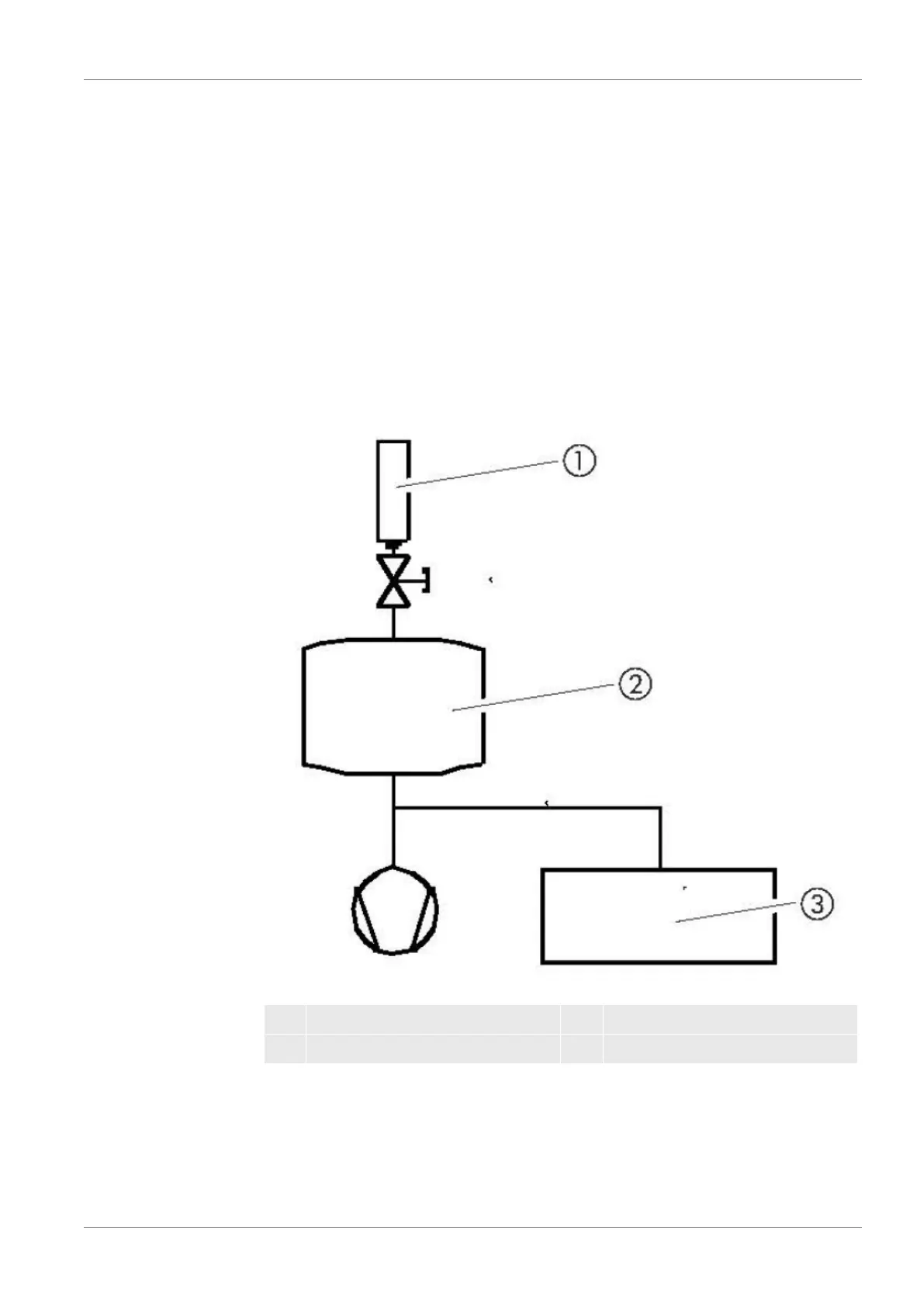

Connection of an external calibration leak for the partial flow
Fig.14:
External calibration, partial flow
1 Calibration leak 2 Test chamber
3 Leak detector
If the device is connected to a vacuum system with an integrated vacuum pump,
connect the calibration leak to its test container.
