Lippert Components In-Wall Slide-Out User Manual

Rev: 06.14.2016
Page 28
IN-WALL® Slide-out Service Manual
IN-WALL
®

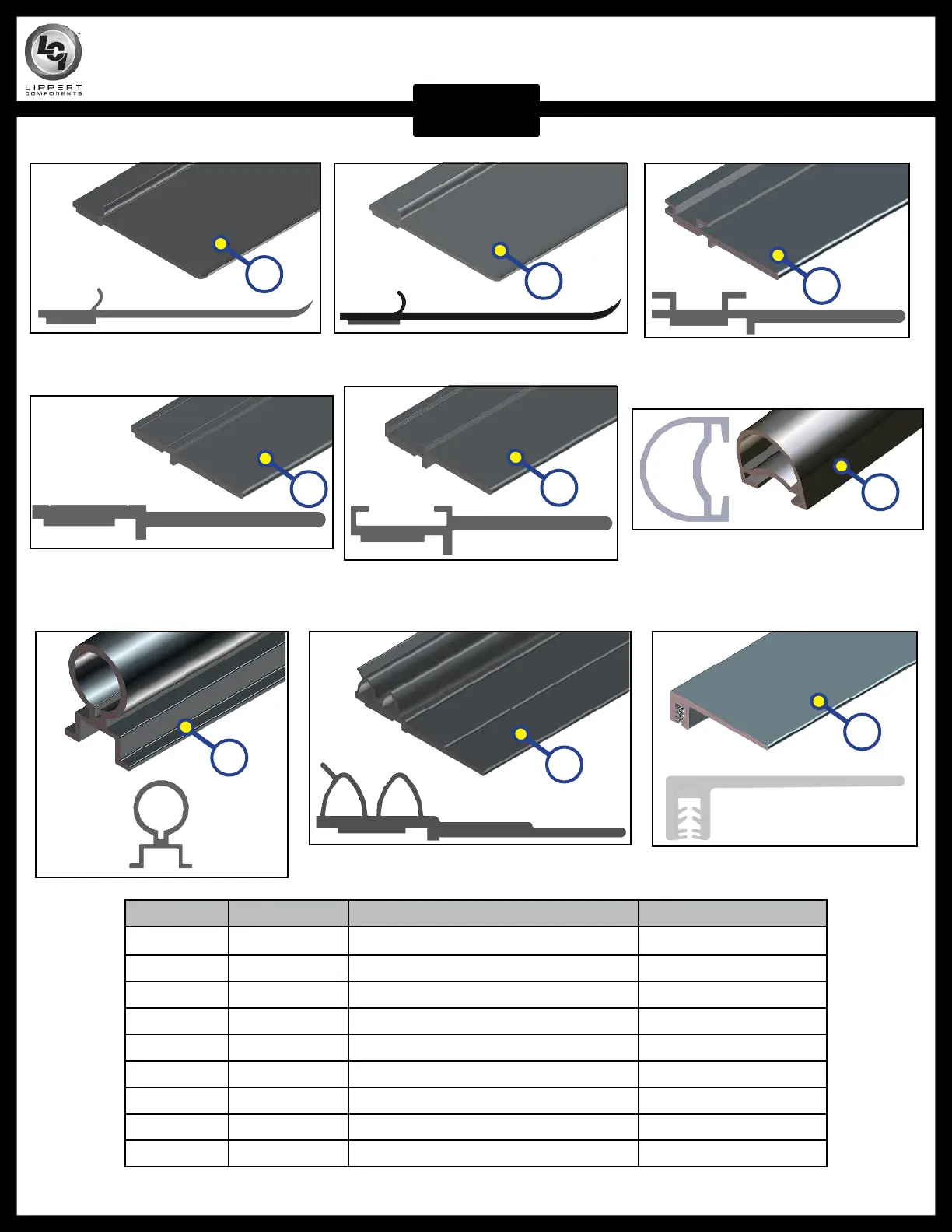

SLIDE-OUT COMPONENTS
SLIDEOUTS
B
A
C
G
E
D
H
I
F
Callout Part # Description Measurements
A 156603 Seal 1" x 2 ⁄" x ⁄"
B 132733 Sweep Seal 2 ⁄" x ⁄"
C 239667 EK Design Flap ¼"
D 240410 Flat Side Wiper 1 ¼"
E 240448 KE Black Single Wiper with Leg 1 ¼"
F 260406 EK Black Slide on D-Seal -
G 240449 KE Black Slide on Bulb Seal -
H 253344 Winnebago Double Bulb Seal -
I 300614 Slide-out Seal 144"
